LWIR Lens 100mm F1
LWIR Lens 100mm F1
SKU:STO-48870e
High-performance LWIR Lens for precise thermal imaging, 100mm focal length, F1, 6.2°x4.6° FOV, compatible with 640×480 detectors, ideal for surveillance.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
LWIR Lens 100mm F1
$899.99
Quantity: 1
Claim Your Seller Account
LWIR Lens 100mm F1
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

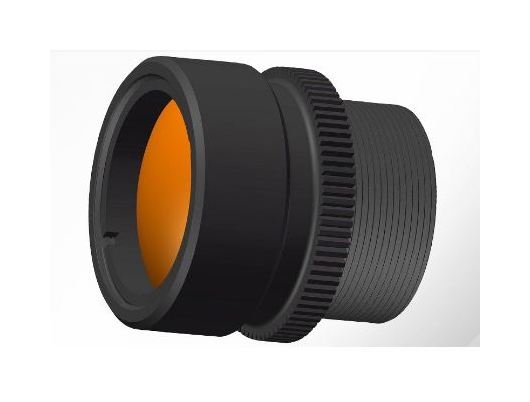

The SO-LWIR-1000-10 Stock Long-Wave Infrared (LWIR) Lens offers exceptional imaging quality with a focal length of 100mm and an F-number of 1. It provides a wide field of view at 6.2°(H)x4.6°(V), suitable for various surveillance and monitoring applications. With manual or motorized focus control and a back working distance of 16mm, this lens ensures flexibility and precision in thermal imaging. Compatible with detectors of 640×480 resolution and 17μm size, it delivers high performance in the 8-12μm working band. Ideal for government and institutional use.
Product Specifications
Specifications Back Working Distance
16 mm
Specifications Detector
640Ã480-17 µm
Specifications Field Of View
6.2°(H)x4.6°(V)
Specifications Focal Length
100 mm
Specifications Focus Control
Manual/ Motorized
Specifications F Number
1
Specifications Mount
M34x0.75/ M45x1
Specifications Working Band
8-12 µm
