LX-100 Shrink Sleeve Labelers with Tamper Evident Banding
LX-100 Shrink Sleeve Labelers with Tamper Evident Banding
SKU:LX1-b8124c
Efficient, versatile, and cost-effective shrink sleeve labeler for industrial applications
Regular price
$25,999.00
Regular price
Sale price
$25,999.00
Unit price
per
Initiate Order
LX-100 Shrink Sleeve Labelers with Tamper Evident Banding
$25,999.00
Quantity: 1
Claim Your Seller Account
LX-100 Shrink Sleeve Labelers with Tamper Evident Banding
$25,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

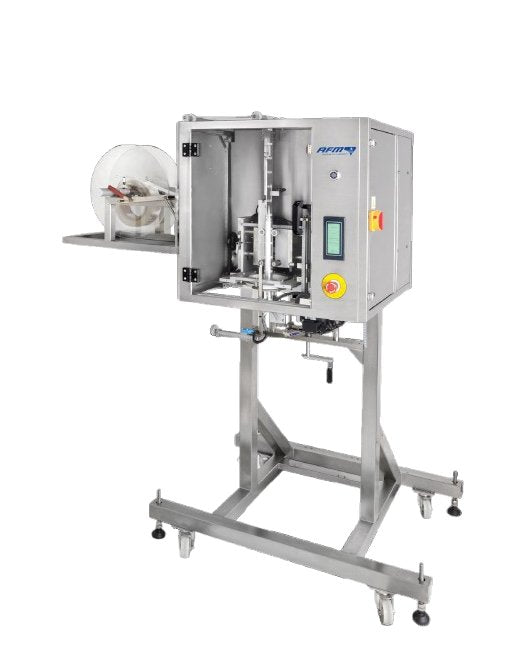

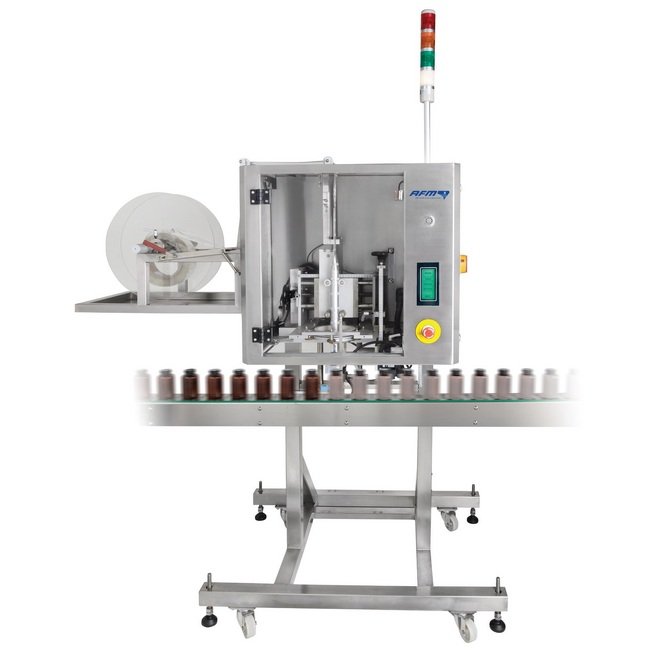

The LX-100 Shrink Sleeve Labeler with Tamper Evident Banding by American Film & Machinery is a cost-effective labeling solution ideal for various industries. This efficient single-head mandrel design offers industrial strength, user flexibility, and versatile performance. With servo-driven technology, the LX-100 ensures precise shrink sleeve labeling on oval and round containers, featuring a fast and effective quick change system for minimal downtime. Rely on this rugged machine for maximum uptime and lower cost of ownership.
Product Specifications
Engineered For Versatility Engineered For Versatility

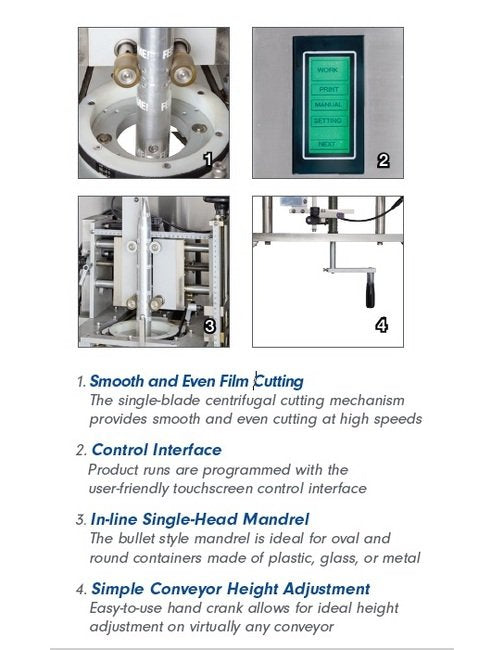

Every LX Series machine is designed with servo driven, PLC controlled label drive rollers, cutter assembly, and label shooting wheels to provide accurate and consistent shrink sleeve labeling. LX-100 has been engineered to handle oval and round containers made of plastic, glass, or metal at speeds of up to 80CPM. Users also have the option of purchasing additional mandrels for non-cylindrical containers. The single-blade centrifugal cutting mechanism provides extremely smooth, even cutting of film thickness of 35 microns up to 70 microns.
Fast And Effective Fast And Effective
The LX-100 also comes with our quick change system for switching mandrels with a turn of a knob. Along with the mandrel, the cutter assembly has only two levers to turn, keeping your downtime to a minimum.
Industrial Strength Design User Flexibility Industrial Strength
The LX-100 is an efficient single-head mandrel style labeling system engineered to meet the demand of your workflow. Designed for single shift operation, LX-100âs simple and low maintenance design allows for quick film change and maximum uptime. LX-100âs compact housing is constructed from 304 grade stainless steel to provide strength and reduce vibration while offering quiet operation. Product runs are programmed with the user-friendly touch-screen control interface HMI, featuring standard and custom menus that can be password protected for an added layer of security.
Note Note
Make your products stand out among the competition with AFM Shrink Sleeves and Tamper Evident Banding
Optional Features And Components Optional Features And Component
Mandrel for non-cylindrical containersVertical and T perforation unitsLabel tamp down deviceDate code / lot code printerDual timing screw assembly
Standard Components Standard Components
Round cylindrical mandrelCutter assemblySingle timing screw unitPhoto eye for registered cuttingLabel brush down deviceSingle roll unwind and tension control
Technical Specs Cut Length
40 to 200 mm
Technical Specs Film Lay Flat
40 to 160 mm
Technical Specs Film Thickness
0.035 to 0.07 mm
Technical Specs Frequency
50 Hz | 60 Hz
Technical Specs Machine Height
60.6 to 77.2 in | 1540 to 1960 mm
Technical Specs Machine Length
57.6 in | 1462.5 mm
Technical Specs Machine Width
35.6 in | 904 mm
Technical Specs Phase
3
Technical Specs Speed
20 to 80 cpm
Technical Specs Voltage
220 V | 380 V | 400 V | 440 V
The Right Choice The Right Choice
Rugged design. Maximum uptime. Lower cost of ownership. Your benefits go on and on. When it comes to shrink sleeve and tamper band application, rely on American Film & Machinery to provide the right solution for your shrink sleeve labeling needs.
