LX-150 Tamper Evident Banding and Shrink Sleeve Labeling Machine
LX-150 Tamper Evident Banding and Shrink Sleeve Labeling Machine
SKU:PAC-44203c
Enhance your labeling process with the LX-150 Tamper Evident Banding and Shrink Sleeve Labeling Machine's precision, speed, and durability.
Regular price
$23,599.00
Regular price
Sale price
$23,599.00
Unit price
per
Initiate Order
LX-150 Tamper Evident Banding and Shrink Sleeve Labeling Machine
$23,599.00
Quantity: 1
Claim Your Seller Account
LX-150 Tamper Evident Banding and Shrink Sleeve Labeling Machine
$23,599.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

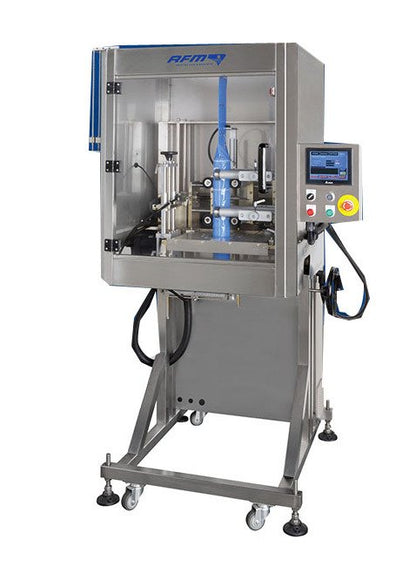

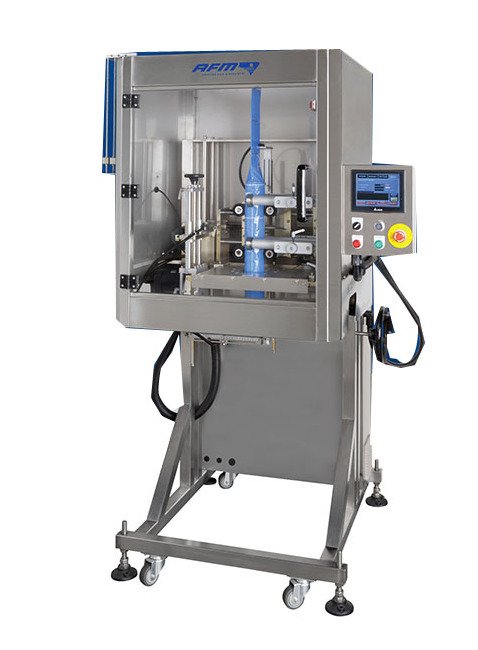

The LX-150 Tamper Evident Banding and Shrink Sleeve Labeling Machine by American Film & Machinery is a versatile mid-range labeling solution designed for industries demanding precision and efficiency. With capabilities for full body, cap, and middle applications, this system is perfect for sectors such as food and beverage, pharmaceuticals, nutraceuticals, health and beauty, consumer goods, and chemicals. Crafted from high-grade stainless steel, the LX-150 ensures quiet operation, high speed (up to 300 cpm), and 24-hour productivity. Its servo-driven components and 304 grade steel construction guarantee accuracy and durability, catering to oval and round containers made of plastic, glass, or metal. The LX-150 stands out for its quick changeover features, smooth film cutting, in-line single-head mandrel design, and user-friendly touch-screen control panel, providing a reliable and efficient solution for shrink sleeve labeling needs.
Product Specifications
Additional Information Additional Information

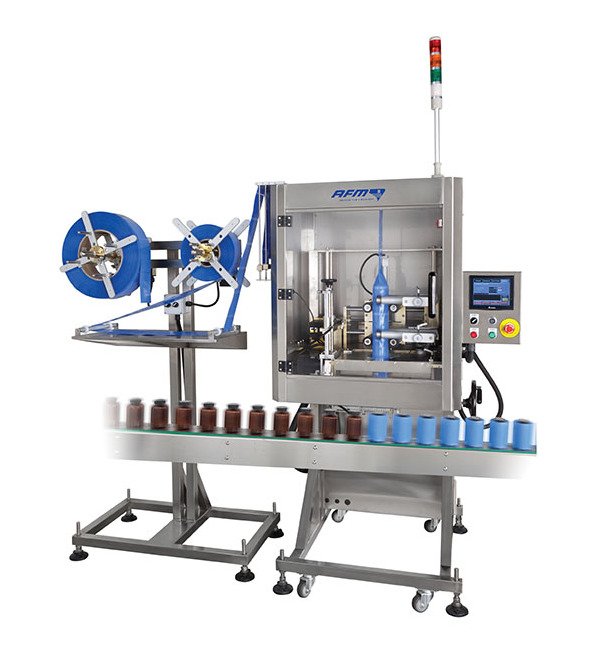

The LX-150 can be rolled up to any conveyor to provide accurate shrink sleeve placement up to 300 products per minute. The machine's sturdy design and construction provides for 24 hour operation, while its' standard dual unwind system allows continued operation with only a brief splicing stop. Product runs are programmed with the user-friendly touch-screen control panel HMI, featuring standard and custom menus that can be password protected for an added layer of security.VERSATILITY AND RELIABILITYEvery LX Series machine is designed with servo driven, PLC controlled label drive rollers, cutter assembly, and label shooting wheels to provide accurate and consistent shrink sleeve labeling. LX-150 is constructed using 304 grade stainless steel to provide strength and reduce vibration while offering quiet operation. LX-150 has been engineered to handle oval and round containers made of plastic, glass, or metal at speeds of up to 300cpm. Users also have the option of purchasing additional mandrels for non-cylindrical containers. The multiple blade rotational cutting mechanism provides extremely smooth, even cutting of film ranging from 35 microns up to 70 microns.GUARANTEED PRECISION. QUICK CHANGEOVER.Size change overs are simple and quick. The cut length can be changed electronically by utilizing the control panels' touch screen interface. For different product diameters, a new timing screw and bullet (mandrel) can be installed in minutes, while different product heights are accommodated by raising or lowering the machine with a turn-screw mechanism. The LX-150 comes with our quick change system for switching mandrels with a turn of a knob. Along with the mandrel, the cutter assembly has only two levers to turn, keeping your downtime to a minimum.THE RIGHT CHOICERugged design. Maximum uptime. Lower cost of ownership. Your benefits go on and on. When it comes to shrink sleeve and tamper band application, rely on American Film & Machinery to provide the right solution for your shrink sleeve labeling needs.
Key Features Key Features

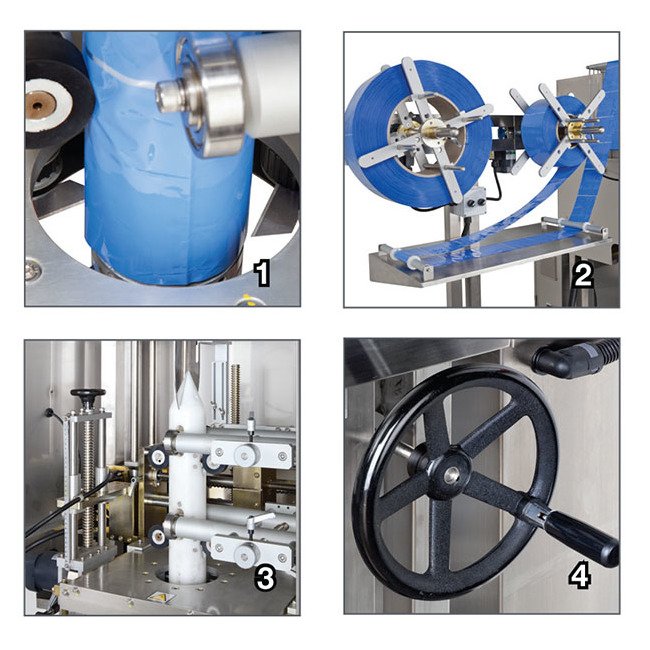

Smooth and Even Film CuttingThe multiple-blade rotational cutting mechanism provides smooth and even cutting at high speedsDual Roll Unwind SystemStandard dual roll film unwind and tension control systems maintain optimal in-feed tension needed for high speed operationsIn-line Single-Head MandrelThe bullet style mandrel is ideal for oval and round containers made of plastic, glass, or metalSimple Conveyor Height AdjustmentEasy-to-use hand crank allows for ideal height adjustment on virtually any conveyor.
Machine Dimensions Machine Height
1850 to 2150 mm | 72.8 to 84.6 in
Machine Dimensions Machine Length
1090 mm | 42.9 in
Machine Dimensions Machine Width
853 mm | 33.6 in
Optional Features And Components Optional Features And Component
Mandrel for non-cylindrical containersCradle belt label stopperVertical and T perforation unitsLabel tamp down deviceDate code / lot code printerDual timing screw assemblyMotorized height adjustmentSiemens PLC and servo motor optionPanasonic servo motor optionXL models available
Power Frequency
50 Hz | 60 Hz
Power Phase
3
Power Voltage
220 V | 380 V | 400 V | 440 V
Specifications Cut Length
30 to 200 mm
Specifications Film Lay Flat
40 to 240 mm
Specifications Film Thickness
0.035 to 0.07 mm
Specifications Speed
50 to 300 cpm
Standard Components Standard Components
Round cylindrical mandrelCutter assemblySingle timing screw unitPhoto eye for registered cuttingLabel brush down deviceDual roll unwind system and tension controlThermal transfer overprinter
