LX-350 Shrink Labeling & Tamper Evident Machine
LX-350 Shrink Labeling & Tamper Evident Machine
SKU:PAC-ae2134
Enhance labeling efficiency with LX-350 Shrink Sleeve Labeling Machine designed for high-volume applications. Consistent, precise, and durable.
Regular price
$34,999.99
Regular price
Sale price
$34,999.99
Unit price
per
Initiate Order
LX-350 Shrink Labeling & Tamper Evident Machine
$34,999.99
Quantity: 1
Claim Your Seller Account
LX-350 Shrink Labeling & Tamper Evident Machine
$34,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

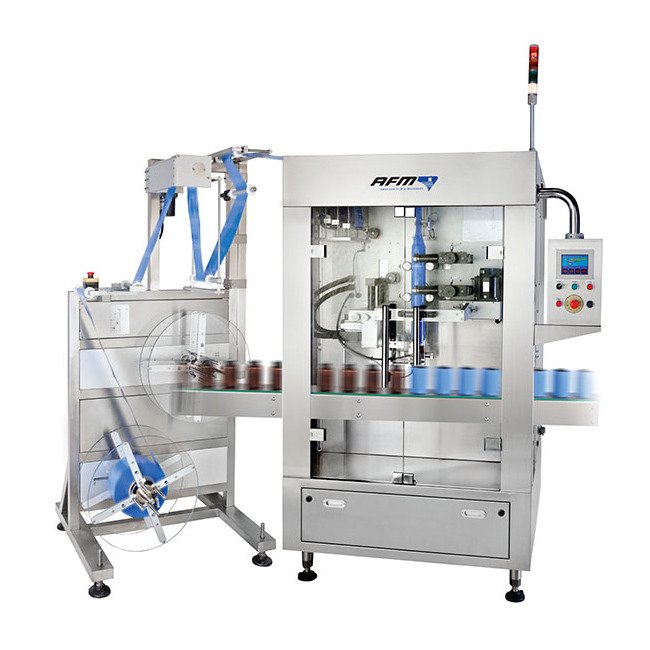

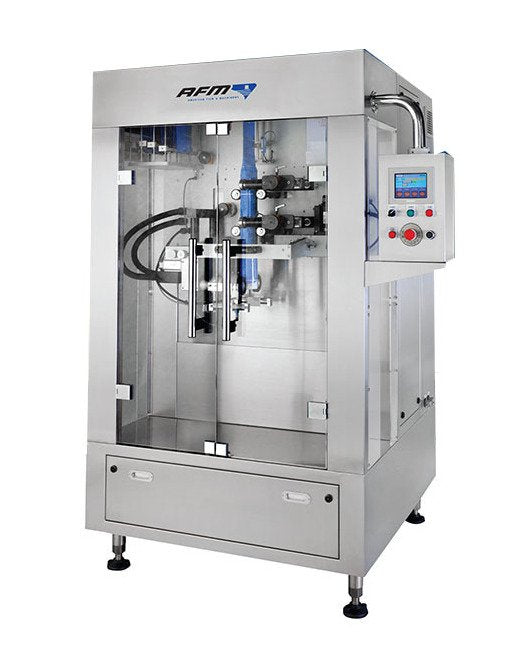

The LX-350 Shrink Sleeve Label and Tamper Evident Band applicator by American Film & Machinery is a high-performance labeling solution designed for industries requiring middle, full body, and full body with cap applications. Engineered for high volume production, it is ideal for food, beverage, pharmaceutical, nutraceutical, and other manufactured goods. This in-line mandrel labeling system boasts an intuitive touchscreen interface, servo-driven rollers for precise labeling, and durable stainless steel construction for reliable 24/7 operation. With customizable menus, quick change system, and multiple blade cutting mechanism, the LX-350 ensures smooth, consistent labeling at speeds up to 500cpm.
Product Specifications
Additional Information Additional Information
The LX-350 can accommodate any conveyor while the machine's sturdy design and construction provides 24 hour operation. The innovative standard dual unwind system allows users to maximize production with only a brief splicing stop. Product runs are programmed with the user-friendly touch-screen control panel HMI, featuring standard and custom menus that can be password protected for an added layer of securityBUILT TO LASTEvery LX Series machine is designed with servo driven, PLC controlled label drive rollers, interchangeable cutter assembly, and label shooting wheels to provide accurate and consistent shrink sleeve labeling. LX-350 is constructed using 304 grade stainless steel to provide strength and reduce vibration while offering quiet operation. LX-350 has been engineered to handle oval and round containers made of plastic, glass, or metal at speeds up to 500cpm. Users also have the option of purchasing additional mandrels for non-cylindrical containers. The multiple blade rotational cutting mechanism provides extremely smooth, even cutting of film ranging from 35 microns up to 70 microns.WORKFLOW VERSATILITYSize change overs are simple and quick. The cut length can be changed electronically by utilizing the control panel's touch screen interface. For different product diameters, a new timing screw and bullet (mandrel) can be installed in minutes, while different product heights are accommodated by raising or lowering the machine with a turn-screw mechanism. The LX-350 comes with our quick change system for switching mandrels with a turn of a knob. Along with the mandrel, the cutter assembly has only two levers to turn, keeping your downtime to a minimum.THE RIGHT CHOICERugged design. Maximum uptime. Lower cost of ownership. Your benefits go on and on. When it comes to shrink sleeve and tamper band application, rely on American Film & Machinery to provide the right solution for your shrink sleeve labeling needs.
Key Features Key Features

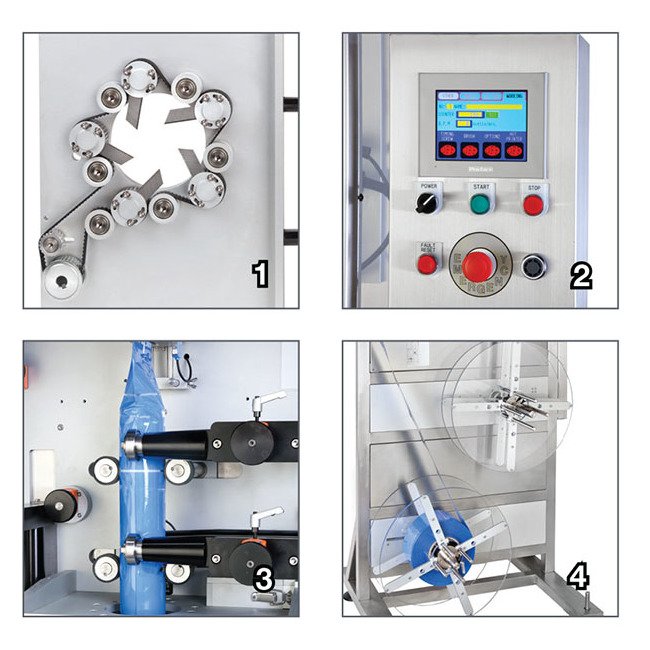

Smooth and Even Film CuttingThe multiple-blade rotational cutting mechanism provides smooth and even cutting at high speedsControl InterfaceProduct runs are programmed with the user-friendly touchscreen control interfaceIn-line Single-Head MandrelThe bullet style mandrel is ideal for oval and round containers made of plastic, glass, or metalDual Roll Unwind SystemStandard dual roll film unwind and tension control systems maintain optimal in-feed tension needed for high speed operations
Machine Dimensions Machine Height
2111 mm | 83.1 in
Machine Dimensions Machine Length
1250 mm | 49.2 in
Machine Dimensions Machine Width
1275 mm | 50.2 in
Optional Features And Components Optional Features And Component
Mandrel for non-cylindrical containersLabel twister for orientationVertical, continuous perforation unitHorizontal and T-perforation unitDate-coder, hot stamp modelsDual timing screw assemblyLabel stopper, cradle belt designLabel tamping assemblyAB or Siemens servo, PLC, electric components and HMIAccumulation Unwinder SystemXL models available
Power Frequency
50 Hz | 60 Hz
Power Phase
3
Power Voltage
220 V | 380 V | 400 V | 440 V
Specifications Cut Length
40 to 300 mm
Specifications Film Lay Flat
50 to 240 mm
Specifications Film Thickness
0.035 to 0.07 mm
Specifications Speed
50 to 500 cpm
Standard Components Standard Components
Multiple dancer in feed tension controlFin-and-bullet mandrel for cylindrical containersPhoto-eye sensor for registered cuttingInterchangeable cutting assembly in one of S/M/L sizesTiming screw assembly with VFD controlled from HMILine control photo sensorsBrush-down assemblyInnovative servo mechanism, PLC and HMIDual-roll label feeding unwinderMotorized height adjustmentDiagnostic Software = easy troubleshootingThermal transfer overprinter
