LX-350 Shrink Sleeve Labelers with Tamper Evident Banding
LX-350 Shrink Sleeve Labelers with Tamper Evident Banding
SKU:LX3-ae2134
High-performance LX-350 Shrink Sleeve Labelers with Tamper Evident Banding for accurate, high-volume labeling in various industries.
Regular price
$45,000.00
Regular price
Sale price
$45,000.00
Unit price
per
Initiate Order
LX-350 Shrink Sleeve Labelers with Tamper Evident Banding
$45,000.00
Quantity: 1
Claim Your Seller Account
LX-350 Shrink Sleeve Labelers with Tamper Evident Banding
$45,000.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

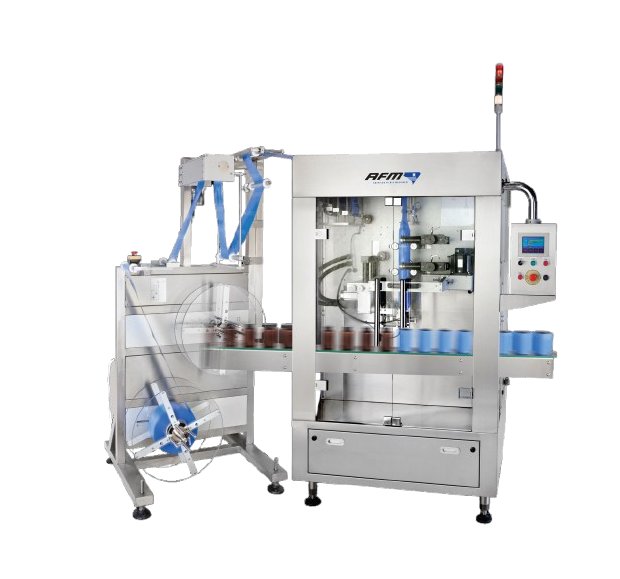

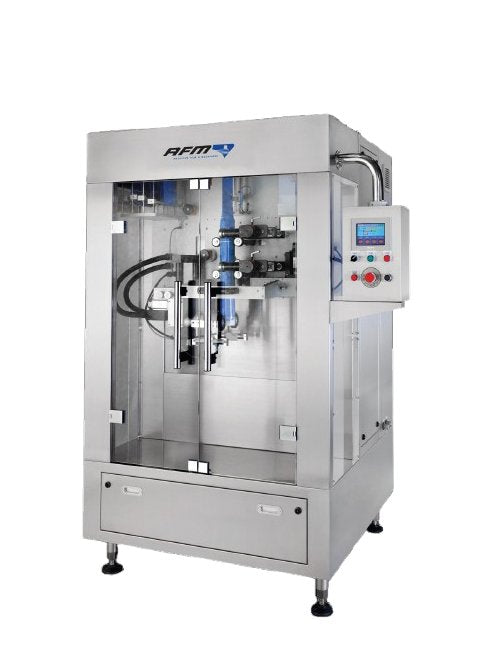

The LX-350 Shrink Sleeve Labelers with Tamper Evident Banding by American Film & Machinery are high-performance labeling machines tailored for middle, full body, and capped applications in various industries including food, pharmaceuticals, consumer goods, and more. Built with industry-leading features like the ability to handle oval and round containers made of plastic, glass, or metal, quick size changeovers, and a durable construction using 304-grade stainless steel, the LX-350 ensures accurate and consistent shrink sleeve labeling at speeds up to 500 cpm. With the LX-350, you benefit from a rugged design, maximum uptime, and lower cost of ownership, making it the ideal choice for your shrink sleeve labeling needs.
Product Specifications
Built To Last Built To Last

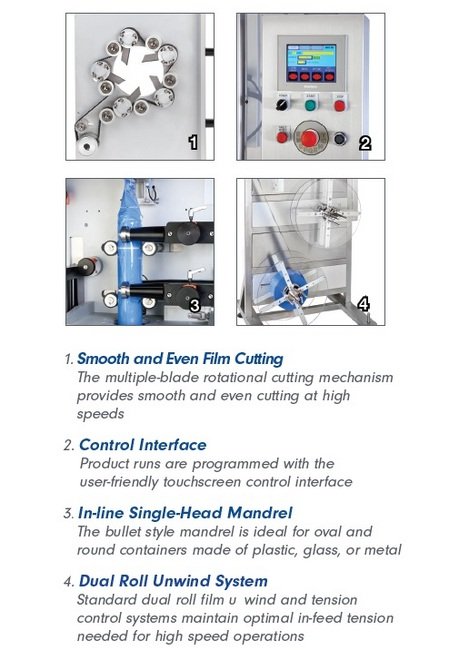

Every LX Series machine is designed with servo driven, PLC controlled label drive rollers, interchangeable cutter assembly, and label shooting wheels to provide accurate and consistent shrink sleeve labeling. LX-350 is constructed using 304 grade stainless steel to provide strength and reduce vibration while offering quiet operation. LX-350 has been engineered to handle oval and round containers made of plastic, glass, or metal at speeds up to 500 cpm. Users also have the option of purchasing additional mandrels for non-cylindrical containers. The multiple blade rotational cutting mechanism provides extremely smooth, even cutting of film ranging from 35 microns up to 70 microns.
Maximize Your Production Maximize Your Production
LX-350 is an in-line single-head mandrel style labeling system designed and engineered to meet the demands of your workflow. The LX-350 can accommodate any conveyor while the machineâs sturdy design and construction provides 24 hour operation. The innovative standard dual unwind system allows users to maximize production with only a brief splicing stop. Product runs are programmed with the user-friendly touch-screen control panel HMI, featuring standard and custom menus that can be password protected for an added layer of security.
Note Note
Make your products stand out among the competition with AFM Shrink Sleeves and Tamper Evident Banding.
Optional Features And Components Optional Features And Component
Mandrel for non-cylindrical containersLabel twister for orientationVertical, continuous perforation unitHorizontal and T-perf unitDate-coder, hot stamp modelsDual timing screw assemblyLabel stopper, cradle belt designLabel tamping assemblyAB or Siemens servo, PLC, electric components and HMIAccumulation Unwinder SystemXL models available
Standard Components Standard Components
Multiple dancer in feed tension controlFin-and-bullet mandrel for cylindrical containersPhoto-eye sensor for registered cuttingInterchangeable cutting assembly in one of S/M/L sizesTiming screw assembly with VFD controlled from HMILine control photo sensorsBrush-down assemblyInnovative servo mechanism, PLC and HMIDual-roll label feeding unwinderMotorized height adjustmentDiagnostic Software = easy troubleshootingThermal transfer overprinter
Technical Specs Cut Length
40 to 300 mm
Technical Specs Film Lay Flat
50 to 240 mm
Technical Specs Film Thickness
0.035 to 0.07 mm
Technical Specs Frequency
50 Hz | 60 Hz
Technical Specs Machine Height
83.1 in | 2111 mm
Technical Specs Machine Length
49.2 in | 1250 mm
Technical Specs Machine Width
50.2 in | 1275 mm
Technical Specs Note For Film Lay Flat And Cut Length
XL models available to accommodate wider film lay flat and longer cut lengths. Please inquire about the XL models from your Authorized Distributor or AFM Representative.
Technical Specs Phase
3
Technical Specs Speed
50 to 500 cpm
Technical Specs Voltage
220 V | 380 V | 400 V | 440 V
The Right Choice The Right Choice
Rugged design. Maximum uptime. Lower cost of ownership. Your benefits go on and on. When it comes to shrink sleeve and tamper band application, rely on American Film & Machinery to provide the right solution for your shrink sleeve labeling needs.
Workflow Versatility Workflow Versatility
Size change overs are simple and quick. The cut length can be changed electronically by utilizing the control panelâs touch screen interface. For different product diameters, a new timing screw and bullet (mandrel) can be installed in minutes, while different product heights are accommodated by raising or lowering the machine with a turn-screw mechanism. The LX-350 comes with our quick change system for switching mandrels with a turn of a knob. Along with the mandrel, the cutter assembly has only two levers to turn, keeping your downtime to a minimum.
