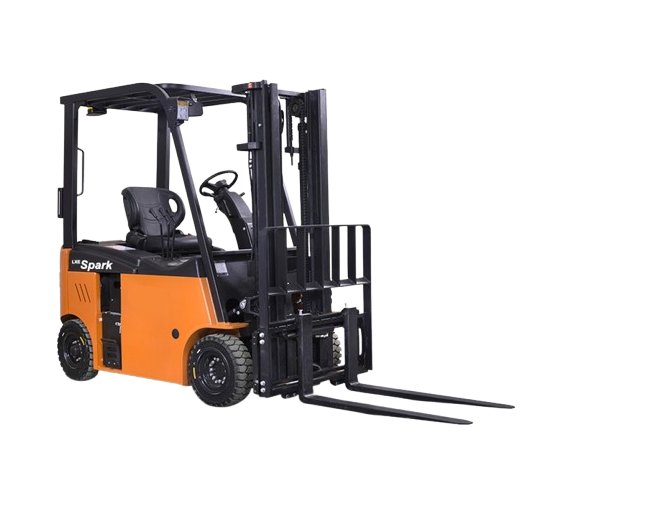

LXE Series Spark 197 Inch Lithium Battery Forklift
LXE Series Spark 197 Inch Lithium Battery Forklift
SKU:LXE-48253e
Enhanced LXE Series Spark Lithium Forklift with 197" lift height, ergonomic design, and efficient operations.
Regular price
$26,999.99
Regular price
Sale price
$26,999.99
Unit price
per
Initiate Order
LXE Series Spark 197 Inch Lithium Battery Forklift
$26,999.99
Quantity: 1
Claim Your Seller Account
LXE Series Spark 197 Inch Lithium Battery Forklift
$26,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The LXE Series Spark 197 Inch Lithium Battery Forklift is a cutting-edge solution designed for efficiency and cost-effectiveness. With a 3700 lb capacity at 24" load center to 130", this forklift features a triple stage mast that lifts up to 197" for versatile operation. The operator compartment is ergonomically designed for comfort and control, with spacious surroundings and intuitive controls. Its powerful AC hydraulic lift motor ensures smooth, high torque lifting, while the 48v 360AH Li-Ion battery offers fast charging and extended service life. Experience reliable performance and low maintenance with this innovative forklift that is ideal for both consumer and institutional usage.
Product Specifications
Battery
UL recognized 48v 360AH Li-Ion battery Capable of fast charging, without gassing or need for maintenance or eye wash stations.Connector: Rema DIN 320PERFORMANCE
Capacity
3700 lbs. at 24" load center to 130" with integral sideshift as standard equipment.Triple stage wide view masts deliver maximum lift heights of up to 197".
Drive Unit And Brakes
AC Drive motor delivers smooth torque and speed performance matched to vehicle needs in real time for peak efficiency and performance.Regenerative neutral braking extends duty-cycle. Vehicle's electromagnetic brakes and lever actuated parking brake ensure effective stopping power during operation and when on rated grades.
Electrical
48v AC controller technology delivers high efficiency and performance while significantly reducing maintenance cost and extending vehicle service life.Vehicle features weather resistant components and construction to facilitate limited use in outdoor environments.Battery management system monitors lithium battery performance during operation and charging to help extend battery service life up far longer than traditional lead acid industrial batteries.
Frame And Mast
Heavy-duty steel chassis features long wheel-base, wide tires and low center of gravity for stable operation. Wide view mast includes an integral side-shift and load back rest (LBR). High seating position gives the operator an excellent view for efficient load handling at ground level and elevation.
Hydraulics
Powerful AC hydraulic lift motor provides smooth high torque lifting and lowering. Hydraulic lift and drive components are sealed against dirt and water protecting them from contamination.
Operator Compartment
Operators compartment is exceptionally spacious due to purpose-built design for an integrated lithium battery. Ergonomic controls are provided for lift, lower, tilt, and sideshift which are within easy reach of the operator. Visibility is excellent through the wide view mast. Power steering with assist knob, adjustable steering column & adjustable suspension seat ensures comfortable working position and reduced fatigue during operation.Large mirror and overhead guard mounted hand rail aids operator when driving the in the reverse direction of travel.LCD programmable display communicates travel speed, battery discharge information, hour meter, and fault codes.
Optional Equipment
4th hydraulic valve, control and hosingHang-on sideshift in lieu of integralSideshifting fork positionerIP54 packageTelematics packageFully enclosed cab
Performance Lift Empty
0 to 83 fpm
Performance Lift Loaded
0 to 55 fpm
Performance Lowering Empty
0 to 85 fpm
Performance Lowering Loaded
0 to 88 fpm
Performance Travel Empty
8.75 mph
Performance Travel Loaded
8.50 mph
Serviceability
On-board programmable LCD display allows for troubleshooting and system adjustments without need of tools. Units come pre-wired for optional telematics system that includes cloud based maintenance monitoring, GPS tracking and related data services.
Standard Equipment
Headlights and brake LightsTurn signals & back up alarmSolid pneumatic tiresIntegral sideshiftUSB accessory charging portReverse travel grab handle with horn480v three phase or 120v charger

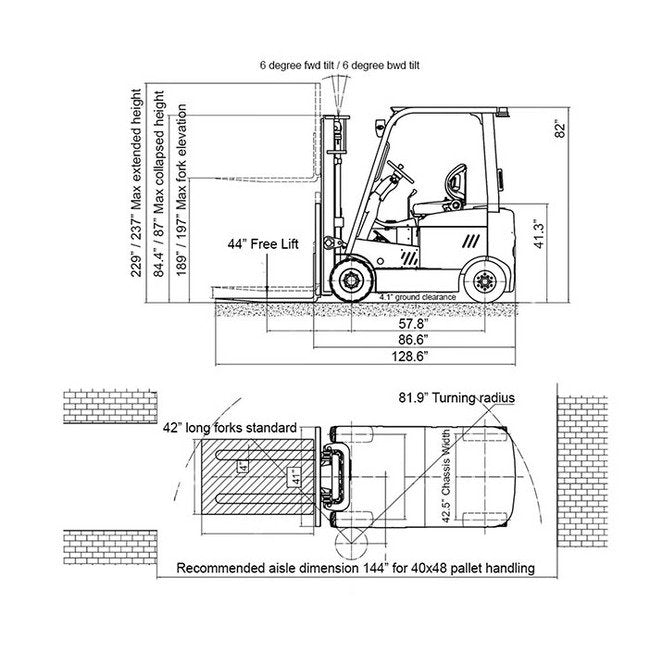

Technical Specs Brands
Big Joe®
Technical Specs Capacity At 24 Inch In Load Center To 130 Inch I
3700 lb
Technical Specs Capacity At 24 Inch In Load Center To 189197 Inc
2500 lb
Technical Specs Column Height B
87.0 in
Technical Specs Extended Height Without Backrest D
216 in
Technical Specs Extended Height With Backrest D
237 in
Technical Specs Free Lift Without Backrest C
67.5 in
Technical Specs Free Lift With Backrest C
46.5 in
Technical Specs Front Tire Size
17.75 x 8 in
Technical Specs Lift Height A
197 in
Technical Specs Mast
Three Stage
Technical Specs Rear Tire Size
17.25 x 4.5 in
Technical Specs Tire Type
Solid Pneumatic
Technical Specs Weight
7420 lb
