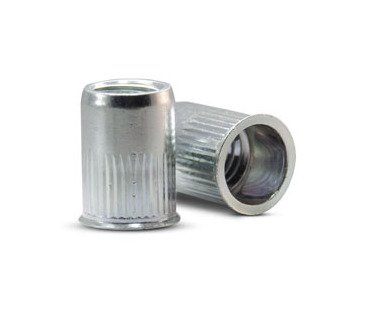

M-Series 10.0mm Open End Rivet Nut

Name: M-Series 10.0mm Open End Rivet Nut
Brand: Ornit USA
SKU: MSE-1b9026
Price: 12.99 USD
Availability: OutOfStock

SKU:MSE-1b9026

High-quality M-Series 10.0mm steel rivet nut with reduced countersunk head. Ideal for secure and easy fastening in industrial applications.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The M-Series 10.0mm Open End Reduced Countersunk Head Steel Rivet Nut is a high-quality fastening solution designed for precision. With a durable steel construction and zinc-plated finish, this rivet nut offers reliable performance in various applications. Its open-end design and reduced countersunk head ensure ease of installation and a secure grip range of 0.5mm to 3.0mm. Suitable for a 6.0mm hole size, this rivet nut is also available in stainless steel and aluminum variants. Compliant with federal procurement standards, this rivet nut provides exceptional strength and stability for industrial and government projects.

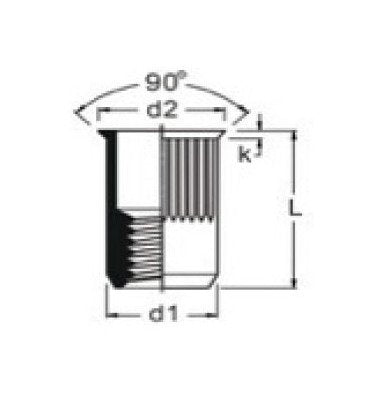

Product Specifications

Dimensions Dimension D1

5.9 mm

Dimensions Dimension L

10.0 mm

Dimensions Hole Size

6.0 mm

Dimensions Maximum Dimension D2

7.0 mm

Dimensions Maximum Dimension K

0.6 mm

Dimensions Maximum Grip Range

3.0 mm

Dimensions Minimum Grip Range

0.5 mm

Note Note

Stainless Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Zinc Plated

Technical Specs Head Style

Reduced Countersunk Head (Small)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

M-Series 10.0mm Open End Rivet Nut
