M-Series 14.5mm Steel Rivet Nut

Name: M-Series 14.5mm Steel Rivet Nut
Brand: Ornit USA
SKU: MSE-51da93
Price: 9.99 USD
Availability: OutOfStock

SKU:MSE-51da93

High-strength 14.5mm Steel Rivet Nut for M6 threads, zinc-plated with open-end design & reduced countersunk head. Various material options available.

$9.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

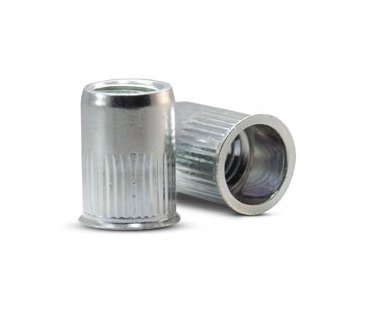

The M-Series 14.5mm Steel Rivet Nut features a durable steel construction with a zinc-plated finish, designed for M6 thread size applications. Its open-end design with a small reduced countersunk head ensures secure fastening with a minimum grip range of 0.5mm and a maximum grip range of 3.0mm. With precise dimensions and compatibility with 9.0mm holes, this rivet nut delivers reliable performance and easy installation. Available in stainless steel and aluminum variants. Ideal for industrial and government procurement needs.

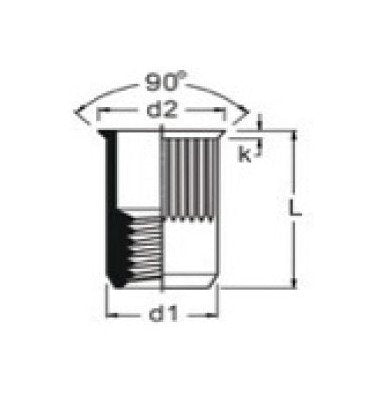

Product Specifications

Dimensions Dimension D1

8.9 mm

Dimensions Dimension L

14.5 mm

Dimensions Hole Size

9.0 mm

Dimensions Maximum Dimension D2

10.0 mm

Dimensions Maximum Dimension K

0.6 mm

Dimensions Maximum Grip Range

3.0 mm

Dimensions Minimum Grip Range

0.5 mm

Note Note

Stainless Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Zinc Plated

Technical Specs Head Style

Reduced Countersunk Head (Small)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

M-Series 14.5mm Steel Rivet Nut
