M-Series 25.5mm Closed End Countersunk Head (Large) Rivet Nut

Name: M-Series 25.5mm Closed End Countersunk Head (Large) Rivet Nut
Brand: Ornit USA
SKU: MSE-a677ad
Price: 12.99 USD
Availability: OutOfStock

SKU:MSE-a677ad

Ornit's robust M-Series 25.5mm Rivet Nut: zinc-plated steel, M5 thread, flush large countersunk head, versatile for steel applications.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

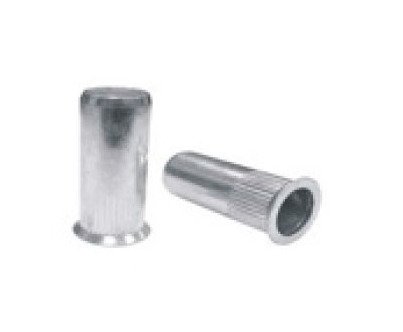

The M-Series 25.5mm Closed End Countersunk Head (Large) Rivet Nut by Ornit is a structural powerhouse designed for optimal fastening in steel applications. Crafted from durable zinc-plated steel, this rivet nut features an M5 thread size, ensuring secure and lasting connections. With a minimum grip range of 6.5mm and a maximum grip range of 9.0mm, it accommodates varying thicknesses with precision. The large countersunk head provides a flush finish, ideal for professional and aesthetic outcomes. Available in stainless steel and aluminum variants, this rivet nut offers versatility for different project requirements.

Product Specifications

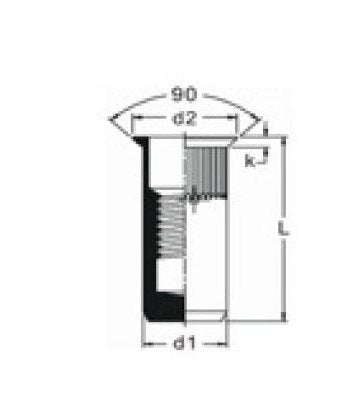

Dimensions Dimension D1

6.9 mm

Dimensions Dimension L

25.5 mm

Dimensions Hole Size

7.0 mm

Dimensions Maximum Dimension D2

9.4 mm

Dimensions Maximum Dimension K

1.5 mm

Dimensions Maximum Grip Range

9.0 mm

Dimensions Minimum Grip Range

6.5 mm

Note Note

Stainless Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Zinc Plated

Technical Specs Head Style

Countersunk Head (Large)

Technical Specs Material

Steel

Technical Specs Rivet Type

Closed End

Technical Specs Thread Size

M-Series 25.5mm Closed End Countersunk Head (Large) Rivet Nut
