M-Series 9.5mm Open End Rivet Nut
M-Series 9.5mm Open End Rivet Nut
SKU:MSE-aececb
Secure and durable 9.5mm steel rivet nut with reduced countersunk head design for flush finish. M3 thread size, zinc plated, versatile grip range of 0.5mm-2.5mm.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
M-Series 9.5mm Open End Rivet Nut
$12.99
Quantity: 1
Claim Your Seller Account
M-Series 9.5mm Open End Rivet Nut
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

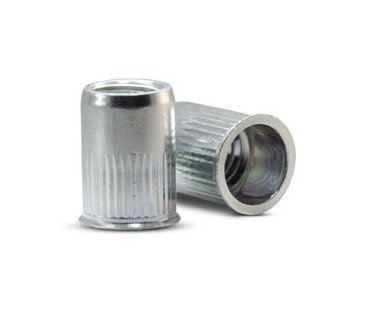

The M-Series 9.5mm Open End Reduced Countersunk Head Steel Rivet Nut by Ornit is a high-quality fastener designed for secure and durable fastening applications. Made from zinc-plated steel, this rivet nut ensures long-lasting corrosion resistance. With a thread size of M3 and a grip range of 0.5mm to 2.5mm, it provides versatility in various assembly projects. The reduced countersunk head design offers a flush finish for a professional look. Suitable for use with a 5.0mm hole, this rivet nut is also available in stainless steel and aluminum options.
Ready to Grow Without Cash Flow Constraints?

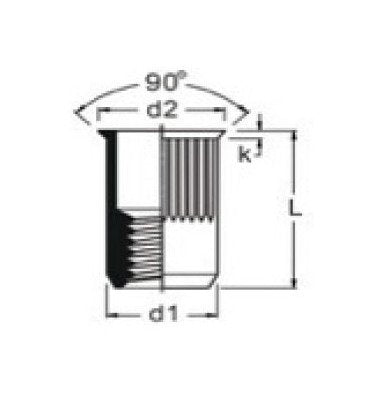

Product Specifications
Dimensions Dimension D1
4.9 mm
Dimensions Dimension L
9.5 mm
Dimensions Hole Size
5.0 mm
Dimensions Maximum Dimension D2
6.0 mm
Dimensions Maximum Dimension K
0.6 mm
Dimensions Maximum Grip Range
2.5 mm
Dimensions Minimum Grip Range
0.5 mm
Note Note
Stainless Steel & Aluminum are available.
Technical Specs Brands
Ornit
Technical Specs Finish
Zinc Plated
Technical Specs Head Style
Reduced Countersunk Head (Small)
Technical Specs Material
Steel
Technical Specs Rivet Type
Open End
Technical Specs Thread Size
M3
