M-Series Large Countersunk Head Rivet Nut - M6 Thread Size, 26.0mm L

Name: M-Series Large Countersunk Head Rivet Nut - M6 Thread Size, 26.0mm L
Brand: Ornit USA
SKU: MSE-473dc6
Price: 14.99 USD
Availability: OutOfStock

SKU:MSE-473dc6

High-quality M-Series Rivet Nut - M6, 26.0mm L, Durable Steel, Zinc Plated, Secure Fastening

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

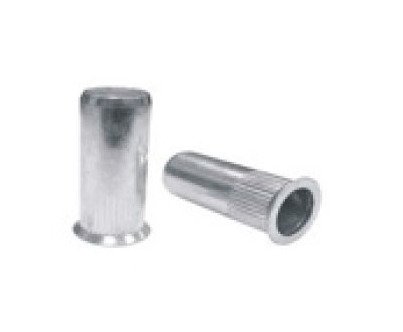

The M-Series 26.0mm Dimension L and M6 Thread Size Closed End Countersunk Head Rivet Nut, crafted from high-quality steel with a zinc plated finish, excels in durability and strength. With a grip range of 4.0mm to 6.5mm and versatile hole size of 9.0mm, this rivet nut ensures a secure fastening solution. Meeting stringent procurement standards, including Federal/DoD requirements and FAR compliance, this product is ideal for both consumer and institutional applications.

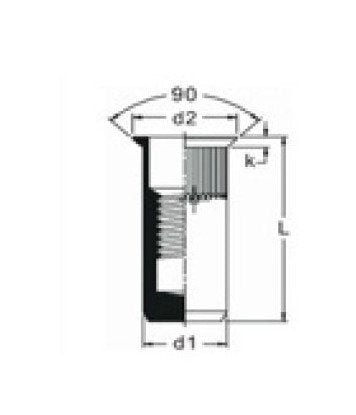

Product Specifications

Dimensions Dimension D1

8.9 mm

Dimensions Dimension L

26.0 mm

Dimensions Hole Size

9.0 mm

Dimensions Maximum Dimension D2

11.4 mm

Dimensions Maximum Dimension K

1.5 mm

Dimensions Maximum Grip Range

6.5 mm

Dimensions Minimum Grip Range

4.0 mm

Note Note

Stainless Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Zinc Plated

Technical Specs Head Style

Countersunk Head (Large)

Technical Specs Material

Steel

Technical Specs Rivet Type

Closed End

Technical Specs Thread Size

M-Series Large Countersunk Head Rivet Nut - M6 Thread Size, 26.0mm L
