M-Series Large Countersunk Head Stainless Steel Rivet Nut

Name: M-Series Large Countersunk Head Stainless Steel Rivet Nut
Brand: Ornit USA
SKU: MSE-3f2514
Price: 14.99 USD
Availability: OutOfStock

SKU:MSE-3f2514

Durable M5 Stainless Steel Rivet Nut for secure and flush fastening solutions.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

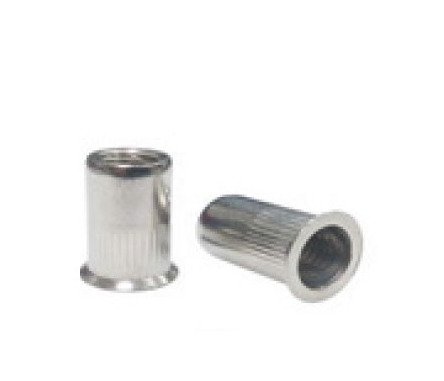

The M-Series 13.5mm Dimension L and M5 Thread Size Open End Countersunk Head (Large) Stainless Steel Rivet Nut is a high-quality fastening solution suitable for a wide range of applications. Constructed from durable stainless steel with a natural finish, this rivet nut offers excellent corrosion resistance and strength. With a minimum grip range of 1.5mm and a maximum grip range of 4.0mm, it provides a secure and reliable fastening solution. The large countersunk head design ensures a flush fit, making it ideal for projects where aesthetics and functionality are key.

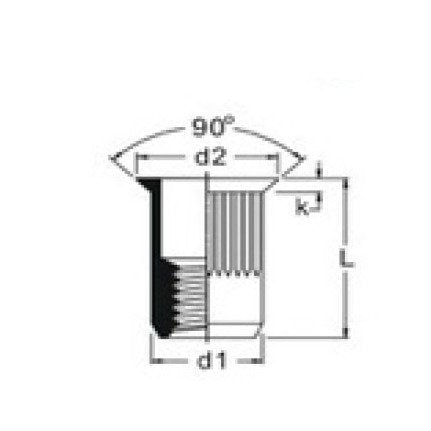

Product Specifications

Dimensions Dimension D1

6.9 mm

Dimensions Dimension L

13.5 mm

Dimensions Hole Size

7.0 mm

Dimensions Maximum Dimension D2

9.4 mm

Dimensions Maximum Dimension K

1.5 mm

Dimensions Maximum Grip Range

4.0 mm

Dimensions Minimum Grip Range

1.5 mm

Note Note

Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Natural

Technical Specs Head Style

Countersunk Head (Large)

Technical Specs Material

Stainless Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size
