M-Series Large Countersunk Head Steel Rivet Nut

Name: M-Series Large Countersunk Head Steel Rivet Nut
Brand: Ornit USA
SKU: MSE-7b1a85
Price: 12.99 USD
Availability: OutOfStock

SKU:MSE-7b1a85

Secure and reliable M10 steel rivet nut with large countersunk head. Meets Federal/DoD standards. Optional stainless steel & aluminum.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

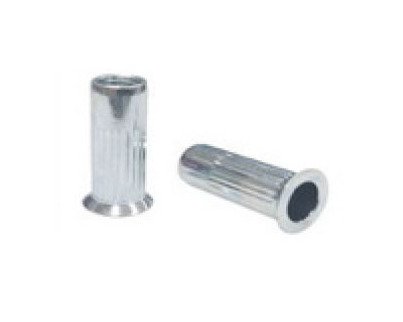

The M-Series 24.0mm Dimension L and M10 Thread Size Open End Countersunk Head (Large) Rivet Nut by Ornit is a durable steel fastening solution with a zinc-plated finish. With grip ranges from 4.5mm to 7.5mm, and a 12.0mm hole size, it offers a secure fit for various applications. This rivet nut meets Federal/DoD procurement standards for quality and reliability, making it ideal for government and institutional use. Optional stainless steel & aluminum variants are also available.

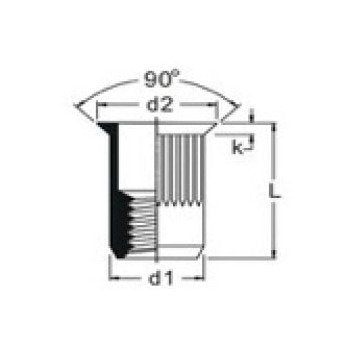

Product Specifications

Dimensions Dimension D1

12.0 mm

Dimensions Dimension L

24.0 mm

Dimensions Hole Size

12.0 mm

Dimensions Maximum Dimension D2

14.7 mm

Dimensions Maximum Dimension K

1.7 mm

Dimensions Maximum Grip Range

7.5 mm

Dimensions Minimum Grip Range

4.5 mm

Note Note

Stainless Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Zinc Plated

Technical Specs Head Style

Countersunk Head (Large)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

M10

M-Series Large Countersunk Head Steel Rivet Nut
