M-Series Large Countersunk Head Steel Rivet Nut

Name: M-Series Large Countersunk Head Steel Rivet Nut
Brand: Ornit USA
SKU: MSE-457af7
Price: 14.99 USD
Availability: OutOfStock

SKU:MSE-457af7

High-quality M-Series steel rivet nut with large countersunk head for secure and professional fastening in industrial applications.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

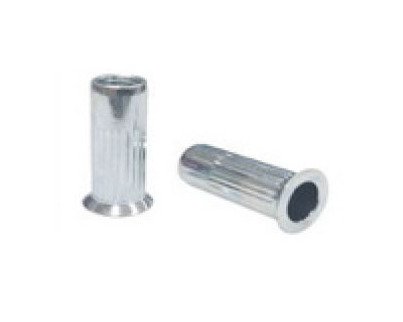

The M-Series 15.0mm Dimension L and M4 Thread Size Open End Countersunk Head Steel Rivet Nut is a high-quality fastening solution designed for industrial applications. Manufactured by Ornit, this rivet nut is made of zinc-plated steel, offering exceptional durability. With a minimum grip range of 4.0mm and maximum of 6.5mm, it provides secure fastening in various materials. The large countersunk head ensures a flush finish, making it ideal for projects requiring a professional look. Available in stainless steel and aluminum variants for added versatility.

Product Specifications

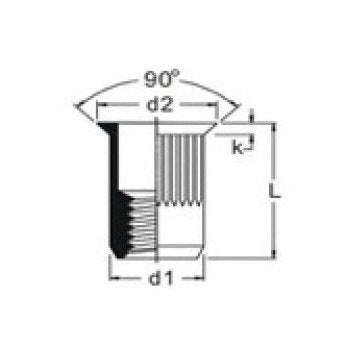

Dimensions Dimension D1

5.9 mm

Dimensions Dimension L

15.0 mm

Dimensions Hole Size

6.0 mm

Dimensions Maximum Dimension D2

8.4 mm

Dimensions Maximum Dimension K

1.5 mm

Dimensions Maximum Grip Range

6.5 mm

Dimensions Minimum Grip Range

4.0 mm

Note Note

Stainless Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Zinc Plated

Technical Specs Head Style

Countersunk Head (Large)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

M-Series Large Countersunk Head Steel Rivet Nut
