M-Series Large Countersunk Head Steel Rivet Nut M6 Thread, 20.5mm L

Name: M-Series Large Countersunk Head Steel Rivet Nut M6 Thread, 20.5mm L
Brand: Ornit USA
SKU: MSE-905b7f
Price: 24.99 USD
Availability: OutOfStock

SKU:MSE-905b7f

High-quality M-Series rivet nut for industrial use, M6 Thread, 20.5mm L, Steel with Zinc Plating

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

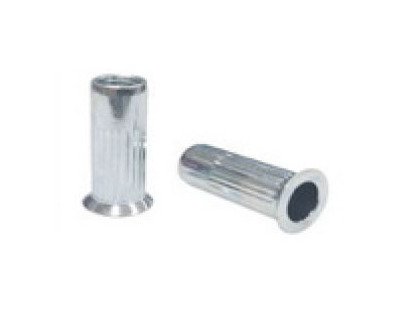

The M-Series Large Countersunk Head Steel Rivet Nut is a premium quality fastening solution designed for industrial applications. With a Thread Size of M6 and a Dimension L of 20.5mm, this rivet nut offers exceptional strength and durability. Made of high-grade Steel with a Zinc Plated finish, it is corrosion-resistant and built to last. The Open End design ensures easy installation and a secure grip range of 6.5mm to 9.0mm. Ideal for a wide range of materials, this rivet nut meets stringent procurement standards for reliability and performance.

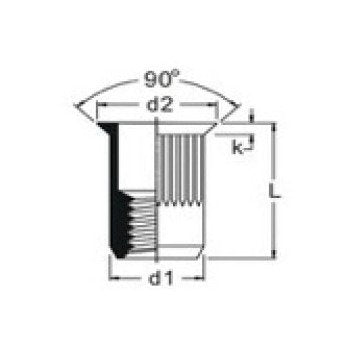

Product Specifications

Dimensions Dimension D1

8.9 mm

Dimensions Dimension L

20.5 mm

Dimensions Hole Size

9.0 mm

Dimensions Maximum Dimension D2

11.4 mm

Dimensions Maximum Dimension K

1.5 mm

Dimensions Maximum Grip Range

9.0 mm

Dimensions Minimum Grip Range

6.5 mm

Note Note

Stainless Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Zinc Plated

Technical Specs Head Style

Countersunk Head (Large)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

M-Series Large Countersunk Head Steel Rivet Nut M6 Thread, 20.5mm L
