M-Series Large Countersunk Steel Rivet Nut

Name: M-Series Large Countersunk Steel Rivet Nut
Brand: Ornit USA
SKU: MSE-468391
Price: 16.99 USD
Availability: OutOfStock

SKU:MSE-468391

Secure M3 steel rivet nut with large countersunk head for 3.5-5.0mm grip. Durable zinc finish, versatile application.

$16.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The M-Series 12.5mm Dimension L and M3 Thread Size Open End Countersunk Head (Large) Steel Rivet Nut is a high-quality fastening solution designed for durability and reliability. Manufactured by Ornit, this rivet nut is made of steel with a zinc plated finish. With a large countersunk head, it ensures a secure grip range of 3.5mm to 5.0mm. The rivet nut's versatile dimensions make it suitable for a variety of applications in construction, automotive, and industrial sectors. Additionally, stainless steel and aluminum options are available for specialized needs.

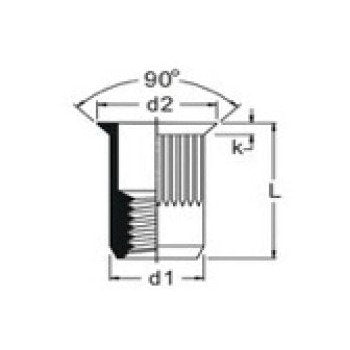

Product Specifications

Dimensions Dimension D1

4.9 mm

Dimensions Dimension L

12.5 mm

Dimensions Hole Size

5.0 mm

Dimensions Maximum Dimension D2

7.4 mm

Dimensions Maximum Dimension K

1.5 mm

Dimensions Maximum Grip Range

5.0 mm

Dimensions Minimum Grip Range

3.5 mm

Note Note

Stainless Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Zinc Plated

Technical Specs Head Style

Countersunk Head (Large)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

M-Series Large Countersunk Steel Rivet Nut
