M-Series M3 Closed End Rivet Nut, 16.5mm L
M-Series M3 Closed End Rivet Nut, 16.5mm L
SKU:MSE-81d747
High-quality M3 Closed End Rivet Nut with flat cylindrical head, 5-7mm dimensions, and 2.5-4.0mm grip range.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
M-Series M3 Closed End Rivet Nut, 16.5mm L
$12.99
Quantity: 1
Claim Your Seller Account
M-Series M3 Closed End Rivet Nut, 16.5mm L
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

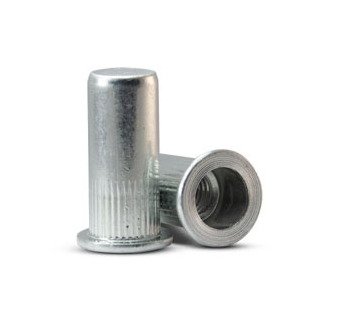

The M-Series 16.5mm Dimension L and M3 Thread Size Closed End Cylindrical Head (Flat) Rivet Nut by Ornit is a durable steel nut with Zinc Plated finish, designed for a secure grip range of 2.5mm to 4.0mm. Its cylindrical head style ensures a streamlined appearance and easy installation. With a hole size of 5.0mm and dimensions meeting industry standards, this rivet nut is also available in Stainless Steel & Aluminum variants for versatile applications in various projects.

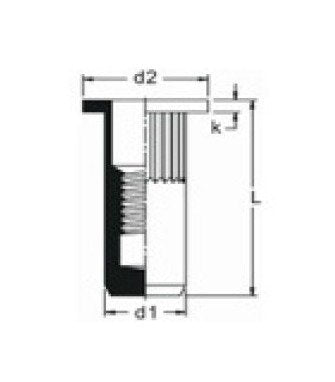

Product Specifications
Dimensions Dimension D1
4.9 mm
Dimensions Dimension L
16.5 mm
Dimensions Hole Size
5.0 mm
Dimensions Maximum Dimension D2
7.0 mm
Dimensions Maximum Dimension K
0.8 mm
Note Note
Stainless Steel & Aluminum are available.
Technical Specs Brands
Ornit
Technical Specs Finish
Zinc Plated
Technical Specs Head Style
Cylindrical Head (Flat)
Technical Specs Material
Steel
Technical Specs Maximum Grip Range
4.0 mm
Technical Specs Minimum Grip Range
2.5 mm
Technical Specs Rivet Type
Closed End
Technical Specs Thread Size
M3
