M-Series Small Rivet Nut, 11.5mm, Steel
M-Series Small Rivet Nut, 11.5mm, Steel
SKU:MSE-51870d
Secure, durable, and versatile M-Series Small Rivet Nut for precise fastening needs.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
M-Series Small Rivet Nut, 11.5mm, Steel
$12.99
Quantity: 1
Claim Your Seller Account
M-Series Small Rivet Nut, 11.5mm, Steel
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

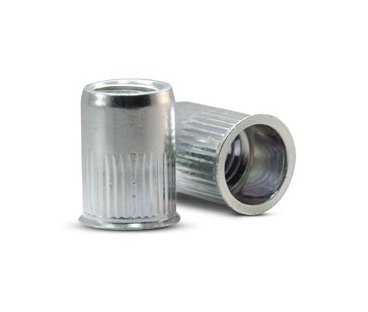

The M-Series 11.5mm Dimension L Open End Reduced Countersunk Head (Small) Steel Rivet Nut is a versatile fastener designed for secure and efficient installations. Made of high-quality steel with a zinc plated finish, it offers durability and corrosion resistance. With a thread size of M5 and dimensions meeting precise specifications, this rivet nut ensures a strong and lasting connection. Suitable for a grip range of 0.5mm to 3.0mm, it provides reliable fastening in various applications. Available in stainless steel and aluminum variants.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

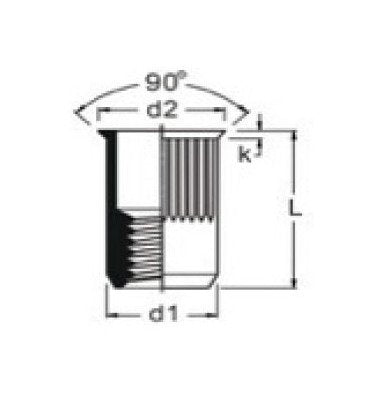

Dimensions Dimension D1
6.9 mm
Dimensions Dimension L
11.5 mm
Dimensions Hole Size
7.0 mm
Dimensions Maximum Dimension D2
8.0 mm
Dimensions Maximum Dimension K
0.6 mm
Dimensions Maximum Grip Range
3.0 mm
Dimensions Minimum Grip Range
0.5 mm
Note Note
Stainless Steel & Aluminum are available.
Technical Specs Brands
Ornit
Technical Specs Finish
Zinc Plated
Technical Specs Head Style
Reduced Countersunk Head (Small)
Technical Specs Material
Steel
Technical Specs Rivet Type
Open End
Technical Specs Thread Size
M5
