M-Series Small Steel Rivet Nut, 19.5mm Open End Reduced Countersunk Head
M-Series Small Steel Rivet Nut, 19.5mm Open End Reduced Countersunk Head
SKU:MSE-ced2b0
Durable M-Series Small Steel Rivet Nut, ideal for secure and flush fastening in diverse applications.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
M-Series Small Steel Rivet Nut, 19.5mm Open End Reduced Countersunk Head
$12.99
Quantity: 1
Claim Your Seller Account
M-Series Small Steel Rivet Nut, 19.5mm Open End Reduced Countersunk Head
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

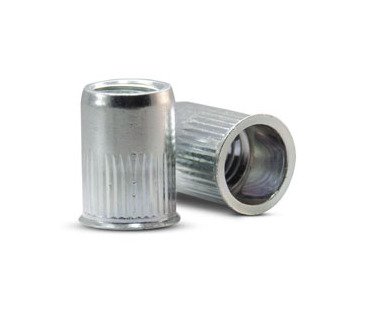

The M-Series Small Steel Rivet Nut features a durable steel construction with a zinc plated finish, ensuring long-lasting performance. With a Thread Size of M10 and versatile Grip Range of 0.8mm to 3.5mm, it offers secure fastening for various applications. The Open End design and Reduced Countersunk Head provide a flush fit, ideal for projects requiring a sleek finish. This rivet nut also offers the option of Stainless Steel or Aluminum material for added customization.
Ready to Grow Without Cash Flow Constraints?

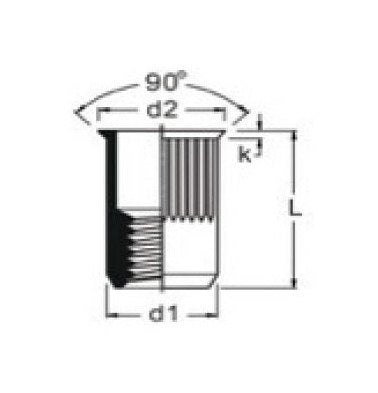

Product Specifications
Dimensions Dimension D1
11.9 mm
Dimensions Dimension L
19.5 mm
Dimensions Hole Size
12.0 mm
Dimensions Maximum Dimension D2
13.5 mm
Dimensions Maximum Dimension K
0.6 mm
Dimensions Maximum Grip Range
3.5 mm
Dimensions Minimum Grip Range
0.8 mm
Note Note
Stainless Steel & Aluminum are available.
Technical Specs Brands
Ornit
Technical Specs Finish
Zinc Plated
Technical Specs Head Style
Reduced Countersunk Head (Small)
Technical Specs Material
Steel
Technical Specs Rivet Type
Open End
Technical Specs Thread Size
M10
