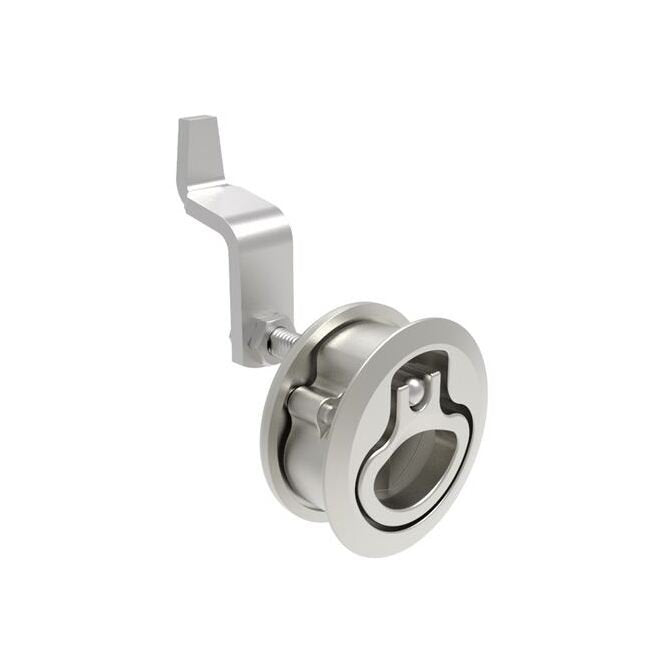

M1 Compression Latches - Medium, 316 Stainless Steel
M1 Compression Latches - Medium, 316 Stainless Steel
SKU:LOC-38e098
Medium-sized M1 Compression Latches in 316 Stainless Steel, ideal for various door thicknesses. Compliant with UL FTTA2/FTTA8 Type 1 standards.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
M1 Compression Latches - Medium, 316 Stainless Steel
$39.99
Quantity: 1
Claim Your Seller Account
M1 Compression Latches - Medium, 316 Stainless Steel
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The M1 Compression Latches are engineered for medium-sized doors with no access restriction. Crafted from durable 316 stainless steel with an electropolished finish, these latches accommodate door thickness ranging from 18.5mm to 29mm. The grip options of 21mm to 28mm or 63mm to 76mm provide versatility for various panel thicknesses. Compliant with UL FTTA2 and FTTA8 Type 1 specifications, these latches offer reliable and secure closures for institutional and government applications.
Product Specifications
Specifications Access Restriction
No Restriction
Specifications Brand
Southco® is a registered trademark of Southco Inc.
Specifications Color Appearance
Bright
Specifications Compliance Specification
UL FTTA2 / FTTA8 Type 1
Specifications Finish
Electropolished
Specifications Grip Maximum
28
Specifications Grip Maximum Cam Reversed
76
Specifications Grip Minimum
21
Specifications Grip Minimum Cam Reversed
63
Specifications Handle Style
D Handle Style
Specifications Material
316 Stainless Steel
Specifications Max Outer Panel Thickness
29
Specifications Min Outer Panel Thickness
18.5
Specifications Performance Data Link
Performance Data
Specifications Product Family
Compression Latches
Specifications Product Specs Link
Product Specifications
Specifications Short Description
Compression Latch, Medium Size, No Restriction, 18.5 - 29mm (.073 - 1.14 in) Door thickness, 21 - 28mm or 63 -76mm (.83 - 1.10 in or 2.48 - 3.00 in) Grip, 316 Stainless Steel, Electropolished
Specifications Size Series
Medium Size
Specifications Trade Drawing
Trade Drawing
