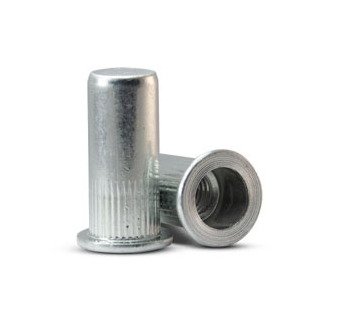

M10 Closed End Cylindrical Rivet Nut, L=28.5mm
M10 Closed End Cylindrical Rivet Nut, L=28.5mm
SKU:MSE-db673f
High-quality M10 Rivet Nut with 28.5mm L, ideal for secure and professional fastening applications. Compliant with federal standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
M10 Closed End Cylindrical Rivet Nut, L=28.5mm
$24.99
Quantity: 1
Claim Your Seller Account
M10 Closed End Cylindrical Rivet Nut, L=28.5mm
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The M-Series 28.5mm Dimension L and M10 Thread Size Closed End Cylindrical Head Rivet Nut by Ornit is a high-quality steel fastener ideal for various applications. With a Grip Range from 0.5mm to 3.0mm, Zinc Plated finish, and the option for Stainless Steel or Aluminum materials, this rivet nut offers durability and versatility. Its precise dimensions and cylindrical flat head design ensure a secure and professional installation. Compliant with federal procurement standards, this rivet nut meets stringent quality requirements.

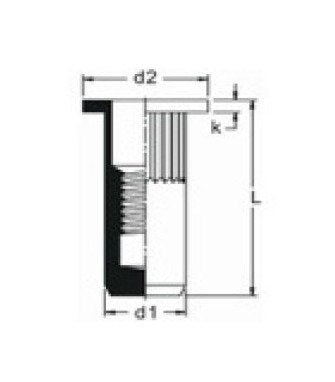

Product Specifications
Dimensions Dimension D1
11.9 mm
Dimensions Dimension L
28.5 mm
Dimensions Hole Size
12.0 mm
Dimensions Maximum Dimension D2
16.0 mm
Dimensions Maximum Dimension K
2.0 mm
Note Note
Stainless Steel & Aluminum are available.
Technical Specs Brands
Ornit
Technical Specs Finish
Zinc Plated
Technical Specs Head Style
Cylindrical Head (Flat)
Technical Specs Material
Steel
Technical Specs Maximum Grip Range
3.0 mm
Technical Specs Minimum Grip Range
0.5 mm
Technical Specs Rivet Type
Closed End
Technical Specs Thread Size
M10
