M10 Steel Rivet Nut - Countersunk Head (Large)

Name: M10 Steel Rivet Nut - Countersunk Head (Large)
Brand: Ornit USA
SKU: MSE-2ff68f
Price: 12.99 USD
Availability: OutOfStock

SKU:MSE-2ff68f

Durable M10 steel rivet nut with zinc-plated finish, closed-end design, and wide grip range. Ideal for secure and reliable fastening applications.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The M-Series 33.5mm Dimension L and M10 Thread Size Closed End Countersunk Head (Large) Rivet Nut by Ornit is crafted from high-quality steel with a durable zinc-plated finish. This rivet nut features a closed-end design, ensuring secure fastening suitable for a minimum grip range of 4.5mm to a maximum of 7.5mm. With precise dimensions and a hole size of 12.0mm, it offers reliability and strength for various applications. Available in stainless steel and aluminum options, this rivet nut is a versatile solution for professional fastening needs.

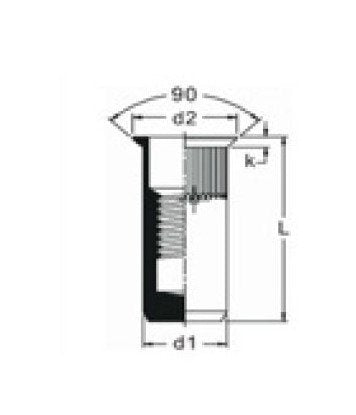

Product Specifications

Dimensions Dimension D1

11.9 mm

Dimensions Dimension L

33.5 mm

Dimensions Hole Size

12.0 mm

Dimensions Maximum Dimension D2

14.7 mm

Dimensions Maximum Dimension K

1.7 mm

Dimensions Maximum Grip Range

7.5 mm

Dimensions Minimum Grip Range

4.5 mm

Note Note

Stainless Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Zinc Plated

Technical Specs Head Style

Countersunk Head (Large)

Technical Specs Material

Steel

Technical Specs Rivet Type

Closed End

Technical Specs Thread Size

M10
