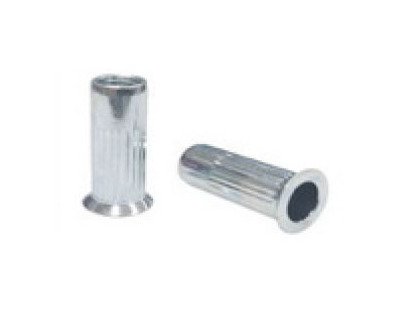

M10 Steel Rivet Nut - Open End Countersunk Head (Large)

Name: M10 Steel Rivet Nut - Open End Countersunk Head (Large)
Brand: Ornit USA
SKU: MSE-7232ba
Price: 16.99 USD
Availability: OutOfStock

SKU:MSE-7232ba

High-quality M10 steel rivet nut with open end countersunk head for secure fastening in industrial applications.

$16.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The M10 Steel Rivet Nut with Open End Countersunk Head (Large) from the M-Series is a versatile and durable fastening solution. Constructed from high-quality steel with zinc plating, this rivet nut ensures strong and secure connections. With a 27.0mm Dimension L and M10 Thread Size, it offers a grip range of 7.5mm to 10.5mm, making it suitable for various applications. Ideal for industrial and automotive use, this rivet nut is compatible with a 12.0mm hole size and meets stringent quality standards.

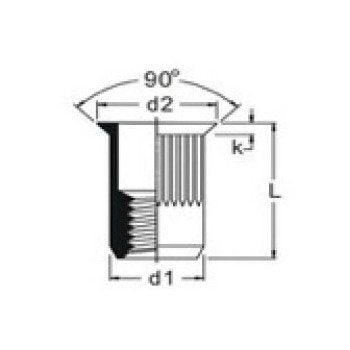

Product Specifications

Dimensions Dimension D1

12.0 mm

Dimensions Dimension L

27.0 mm

Dimensions Hole Size

12.0 mm

Dimensions Maximum Dimension D2

14.7 mm

Dimensions Maximum Dimension K

1.7 mm

Dimensions Maximum Grip Range

10.5 mm

Dimensions Minimum Grip Range

7.5 mm

Note Note

Stainless Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Zinc Plated

Technical Specs Head Style

Countersunk Head (Large)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

M10
