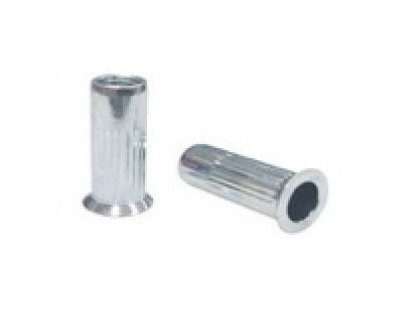

M10 Steel Rivet Nut with Large Countersunk Head, 21.0mm L

Name: M10 Steel Rivet Nut with Large Countersunk Head, 21.0mm L
Brand: Ornit USA
SKU: MSE-249a89
Price: 24.99 USD
Availability: OutOfStock

SKU:MSE-249a89

High-quality M10 Steel Rivet Nut with Large Countersunk Head for secure and aesthetic fastening solutions.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The M-Series 21.0mm Dimension L and M10 Thread Size Open End Countersunk Head (Large) Steel Rivet Nut is a versatile and durable fastening solution for a range of applications. Manufactured by Ornit, this rivet nut is constructed from high-quality steel with a zinc-plated finish, ensuring corrosion resistance and longevity. With a grip range between 2.0mm to 4.5mm and a hole size of 12.0mm, it offers secure fastening in various materials. The large countersunk head design provides a flush finish, ideal for aesthetic appeal and functionality.

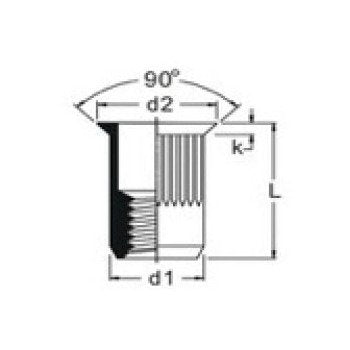

Product Specifications

Dimensions Dimension D1

12.0 mm

Dimensions Dimension L

21.0 mm

Dimensions Hole Size

12.0 mm

Dimensions Maximum Dimension D2

14.7 mm

Dimensions Maximum Dimension K

1.7 mm

Dimensions Maximum Grip Range

4.5 mm

Dimensions Minimum Grip Range

2.0 mm

Note Note

Stainless Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Zinc Plated

Technical Specs Head Style

Countersunk Head (Large)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

M10

M10 Steel Rivet Nut with Large Countersunk Head, 21.0mm L
