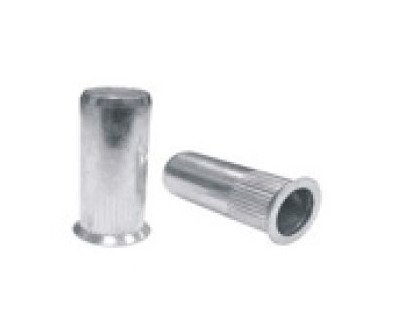

M10 Thread Closed End Rivet Nut, 30.5mm L, Countersunk Head

Name: M10 Thread Closed End Rivet Nut, 30.5mm L, Countersunk Head
Brand: Ornit USA
SKU: MSE-a259e4
Price: 29.99 USD
Availability: OutOfStock

SKU:MSE-a259e4

Secure grip M10 Thread Rivet Nut, 30.5mm L, Countersunk Head - Steel with Zinc Plating. Meets Federal & GSA standards.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The M-Series 30.5mm Dimension L and M10 Thread Size Closed End Countersunk Head Rivet Nut by Ornit is a durable and versatile fastening solution. Made from steel with a zinc-plated finish, it offers a secure grip range of 2.0mm to 4.5mm. Suitable for a 12.0mm hole size, this rivet nut meets stringent industry standards, including Federal procurement and GSA requirements. With options for Stainless Steel & Aluminum, it ensures high-performance in various applications.

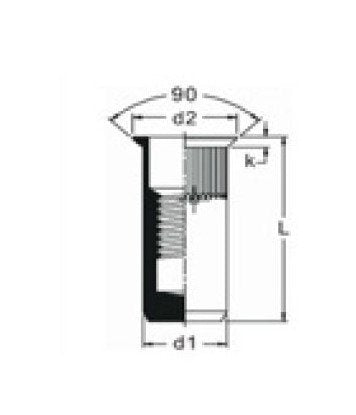

Product Specifications

Dimensions Dimension D1

11.9 mm

Dimensions Dimension L

30.5 mm

Dimensions Hole Size

12.0 mm

Dimensions Maximum Dimension D2

14.7 mm

Dimensions Maximum Dimension K

1.7 mm

Dimensions Maximum Grip Range

4.5 mm

Dimensions Minimum Grip Range

2.0 mm

Note Note

Stainless Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Zinc Plated

Technical Specs Head Style

Countersunk Head (Large)

Technical Specs Material

Steel

Technical Specs Rivet Type

Closed End

Technical Specs Thread Size

M10

M10 Thread Closed End Rivet Nut, 30.5mm L, Countersunk Head
