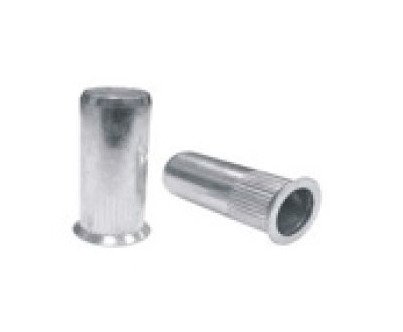

M12 Closed End Countersunk Head Large Rivet Nut - 38.0mm

Name: M12 Closed End Countersunk Head Large Rivet Nut - 38.0mm
Brand: Ornit USA
SKU: MSE-8204f2
Price: 29.99 USD
Availability: OutOfStock

SKU:MSE-8204f2

High-quality M12 steel rivet nut with zinc finish, 38.0mm L, ideal for various applications.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The M12 Closed End Countersunk Head Large Rivet Nut is a reliable and durable fastening solution manufactured by Ornit. Made of high-quality steel with a zinc-plated finish, this rivet nut is designed for secure and long-lasting installations. With dimensions meeting industry standards, including a dimension L of 38.0mm and a threaded M12 size, it offers a secure grip range of 4.5mm to 7.5mm. Ideal for a wide range of applications, this rivet nut is also available in stainless steel and aluminum options.

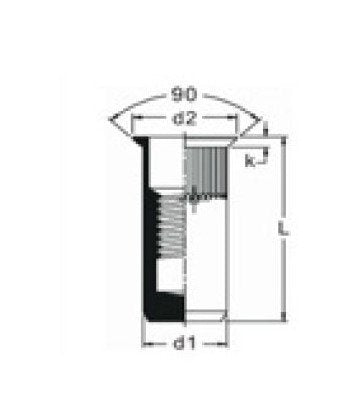

Product Specifications

Dimensions Dimension D1

15.9 mm

Dimensions Dimension L

38.0 mm

Dimensions Hole Size

16.0 mm

Dimensions Maximum Dimension D2

19.2 mm

Dimensions Maximum Dimension K

1.9 mm

Dimensions Maximum Grip Range

7.5 mm

Dimensions Minimum Grip Range

4.5 mm

Note Note

Stainless Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Zinc Plated

Technical Specs Head Style

Countersunk Head (Large)

Technical Specs Material

Steel

Technical Specs Rivet Type

Closed End

Technical Specs Thread Size

M12

M12 Closed End Countersunk Head Large Rivet Nut - 38.0mm
