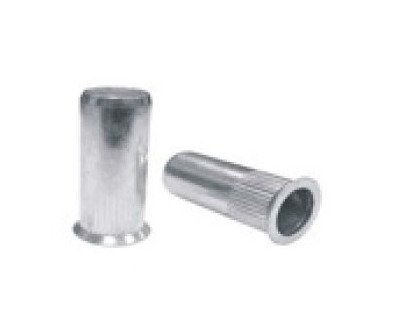

M12 Closed End Countersunk Head Rivet Nut, 35.0mm L

Name: M12 Closed End Countersunk Head Rivet Nut, 35.0mm L
Brand: Ornit USA
SKU: MSE-39e175
Price: 29.99 USD
Availability: OutOfStock

SKU:MSE-39e175

High-quality M12 steel rivet nut with large countersunk head, ideal for secure fastening applications.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The M-Series 35.0mm Dimension L and M12 Thread Size Closed End Countersunk Head Rivet Nut is a high-quality steel nut with a zinc-plated finish. Featuring a closed end design and a large countersunk head, this rivet nut is perfect for secure fastening applications. With a grip range of 2.0mm to 4.5mm and available in stainless steel and aluminum options, it offers versatility and durability. Compliant with Federal/DoD procurement standards and FAR compliance factors, this nut meets stringent quality requirements for institutional buyers.

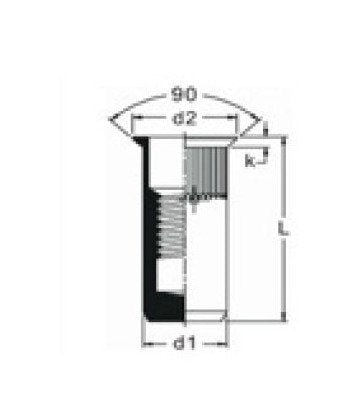

Product Specifications

Dimensions Dimension D1

15.9 mm

Dimensions Dimension L

35.0 mm

Dimensions Hole Size

16.0 mm

Dimensions Maximum Dimension D2

19.2 mm

Dimensions Maximum Dimension K

1.9 mm

Dimensions Maximum Grip Range

4.5 mm

Dimensions Minimum Grip Range

2.0 mm

Note Note

Stainless Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Zinc Plated

Technical Specs Head Style

Countersunk Head (Large)

Technical Specs Material

Steel

Technical Specs Rivet Type

Closed End

Technical Specs Thread Size

M12

M12 Closed End Countersunk Head Rivet Nut, 35.0mm L
