M12 Closed End Countersunk Head Rivet Nut, 41.0mm L

Name: M12 Closed End Countersunk Head Rivet Nut, 41.0mm L
Brand: Ornit USA
SKU: MSE-2bad10
Price: 12.99 USD
Availability: OutOfStock

SKU:MSE-2bad10

Secure and durable M12 Rivet Nut, 41.0mm L, zinc-plated steel. Compliant with federal standards.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

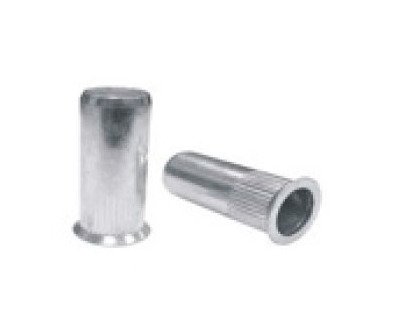

The M12 Closed End Countersunk Head Rivet Nut, with a 41.0mm Dimension L, is a durable and zinc-plated steel fastener ideal for a secure fastening solution. Featuring a large head style and precise dimensions, it offers a grip range of 7.5mm to 10.5mm. Compliant with federal procurement standards, this rivet nut ensures reliable performance in various applications. Available in stainless steel and aluminum variants for versatile usage.

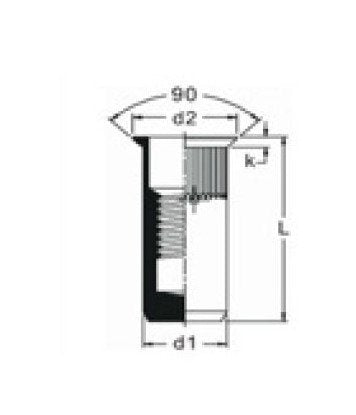

Product Specifications

Dimensions Dimension D1

15.9 mm

Dimensions Dimension L

41.0 mm

Dimensions Hole Size

16.0 mm

Dimensions Maximum Dimension D2

19.2 mm

Dimensions Maximum Dimension K

1.9 mm

Dimensions Maximum Grip Range

10.5 mm

Dimensions Minimum Grip Range

7.5 mm

Note Note

Stainless Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Zinc Plated

Technical Specs Head Style

Countersunk Head (Large)

Technical Specs Material

Steel

Technical Specs Rivet Type

Closed End

Technical Specs Thread Size

M12

M12 Closed End Countersunk Head Rivet Nut, 41.0mm L
