M12 Steel Rivet Nut - Large Countersunk Head, 27.5mm L

Name: M12 Steel Rivet Nut - Large Countersunk Head, 27.5mm L
Brand: Ornit USA
SKU: MSE-43c1f0
Price: 12.99 USD
Availability: OutOfStock

SKU:MSE-43c1f0

High-quality M12 steel rivet nut with large countersunk head, ideal for secure industrial fastenings.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The M-Series 27.5mm Dimension L and M12 Thread Size Open End Countersunk Head Steel Rivet Nut is a robust fastening solution that offers exceptional grip range (4.5mm to 7.5mm) and precise dimensions for secure installations. Crafted from high-quality steel with a zinc-plated finish, it ensures durability and corrosion resistance. Ideal for industrial applications, this rivet nut meets stringent procurement standards, including Federal/DoD requirements, GSA specifications, and FAR compliance, making it a reliable choice for government and institutional buyers.

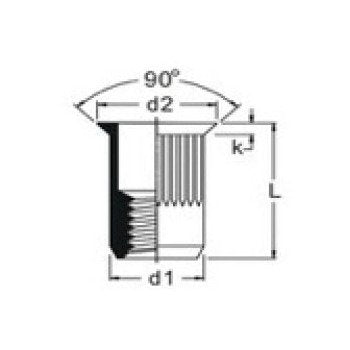

Product Specifications

Dimensions Dimension D1

16.0 mm

Dimensions Dimension L

27.5 mm

Dimensions Hole Size

16.0 mm

Dimensions Maximum Dimension D2

19.2 mm

Dimensions Maximum Dimension K

1.9 mm

Dimensions Maximum Grip Range

7.5 mm

Dimensions Minimum Grip Range

4.5 mm

Note Note

Stainless Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Zinc Plated

Technical Specs Head Style

Countersunk Head (Large)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

M12
