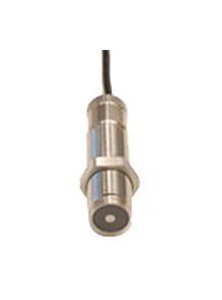

The M18 High-Output Magnetic Speed Sensor by Spectec is a rugged and high-performance VRS sensor designed for a wide range of applications. With coil resistance options ranging from 80 to 5000 Ohms and peak-to-peak output voltages up to 330V, this sensor provides exceptional versatility. It features solid construction with options for integrated temperature sensing and gold-plated connectors. Suitable for extreme temperatures from -268°C to +232°C and hazardous locations, this sensor meets stringent industry standards and can be customized for specific configurations.
Product Specifications
Additional Information Additional Information
High temperature and cryogenic versions can be used in temperatures from -268°C to +232°C (-450°F to +450°F). Extreme temperature versions can be special ordered for temperatures up to 450°C (850°F). Intrinsically Safe and Explosion/Flame Proof versions are also available for Hazardous Locations. The output of this sensor can be converted to a digital signal with a Signal Amplifier. This sensor type can typically be replaced by an Amplified Variable Reluctance Speed Sensor or Hall Effect.
Note Note
For CL 1, Div I and II hazardous location, Intrinsically Safe, and Non-Incendive versions; please refer to IS40/41 and N40/41.
Options Options
For special configurations, threads, materials of construction, and sanitary designs please contact factory.
Technical Specs Brands
Spectec
Technical Specs Coil Resistance Type 1
80 Ω
Technical Specs Coil Resistance Type 2
150 Ω
Technical Specs Coil Resistance Type 3
230 Ω
Technical Specs Coil Resistance Type 4
1200 Ω
Technical Specs Coil Resistance Type 5
2000 Ω
Technical Specs Coil Resistance Type 6
3000 Ω
Technical Specs Coil Resistance Type 7
5000 Ω
Technical Specs Connector
2 Pin | 3 Pin | 4 Pin
Technical Specs Construction
300 Series Stainless SteelSolid Epoxy Encapsulation
Technical Specs European Conformity Ce Compliance
European Standards (EN)50022-2 | European Standards (EN)55011
Technical Specs Gear Pitch For Ep187
⤠12 DP (MODULE 2.11)
Technical Specs Gear Pitch For Ep250
⤠5 DP (MODULE 5.1)
Technical Specs Gear Pitch For Ep62 And Cp10
⤠36 DP (MODULE 0.7)
Technical Specs Gear Pitch For Ep93
⤠26 DP (MODULE 0.98)
Technical Specs Gear Pitch For Fp130 Fps130 Ep106 Eps106 Ep125 A
⤠24 DP (MODULE 1.06)
Technical Specs Inductance Type 1
25 mH
Technical Specs Inductance Type 2
85 mH
Technical Specs Inductance Type 3
120 mH
Technical Specs Inductance Type 4
700 mH
Technical Specs Inductance Type 5
1100 mH
Technical Specs Inductance Type 6
15000 mH
Technical Specs Inductance Type 7
25000 mH
Technical Specs Lead Wire Material 2t
Polyvinyl Chloride (PVC)
Technical Specs Lead Wire Material 3t And 5ht
Tetrafluoroetheylene (TFE)
Technical Specs Lead Wire Material Resistance Temperature Detect
Tetrafluoroetheylene (TFE)
Technical Specs Lead Wire Size 2t
20 to 24 AWG
Technical Specs Lead Wire Size 3t And 5ht
20 AWG
Technical Specs Lead Wire Size Resistance Temperature Detector R
20 AWG
Technical Specs Note For Peak To Peak Output Voltage
1000IPS, 20-pitch gear at 0.005 gap. 100K Ohm load. Inductance and output voltage notations are maximum values.
Technical Specs Peak To Peak Output Voltage Type 1
40 V
Technical Specs Peak To Peak Output Voltage Type 2
50 V
Technical Specs Peak To Peak Output Voltage Type 3
70 V
Technical Specs Peak To Peak Output Voltage Type 4
180 V
Technical Specs Peak To Peak Output Voltage Type 5
230 V
Technical Specs Peak To Peak Output Voltage Type 6
290 V
Technical Specs Peak To Peak Output Voltage Type 7
330 V
