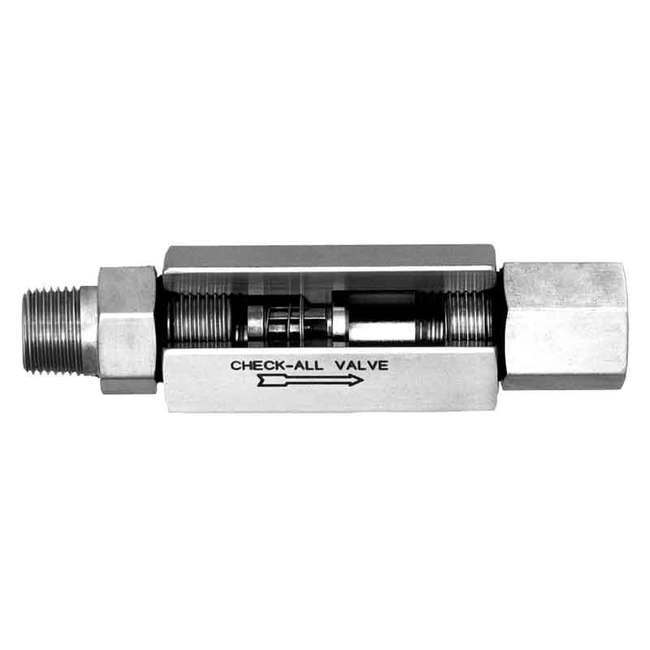

M2 Style Mini-Check Valve - 3/8" Size, 3.50 psi Cracking Pressure
M2 Style Mini-Check Valve - 3/8" Size, 3.50 psi Cracking Pressure
SKU:M1T-af4732
Versatile M2 Style Mini-Check Valve - Ideal for various applications, precise control, & lasting durability.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
M2 Style Mini-Check Valve - 3/8" Size, 3.50 psi Cracking Pressure
$49.99
Quantity: 1
Claim Your Seller Account
M2 Style Mini-Check Valve - 3/8" Size, 3.50 psi Cracking Pressure
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The M2 Style Mini-Check Valve offers minimal pressure drop with versatile end fitting options, making it adaptable for a wide range of applications. Available in 3/8 inch size with female pipe threads, this valve can be utilized as a low-pressure relief valve or vacuum breaker. Crafted with high-quality materials including 316 Stainless Steel and featuring a standard cracking pressure of 3.50 psi, this valve ensures reliable performance and durability in demanding environments. Whether for industrial, commercial, or institutional use, the M2 Style Mini-Check Valve meets stringent quality standards and provides exceptional functionality.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note
When ordering styles M5 through M8 be sure to specify whether compression (-C) or 37º flare (-F).Made in USA.Many valves in this series can be supplied with B16.34 certification. Consult the factory for more information.
Specifications Body Material
316 Stainless Steel = SS | Brass = BR | Carbon Steel = CS
Specifications Certifications
European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified
Specifications Nominal Pipe And Tube Size
3/8 in
Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei
5000 psig
Specifications Note For Material
Listed above are the most common material selections. Please contact the factory for additional options.
Specifications Note For Non Shock Pressure Rating At 100 Degree
Consult factory for P-T rating above 100 ºF.
Specifications Seat Material
"Metal-to-Metal" = MT | Aflas® = AS | Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Perfluoroelastomer = KZ | Polytetrafluoroethylene (PTFE) = TF
Specifications Size Code
C
Specifications Special Options
C = Compression Tube (M5 - M8 only) | F = Flared Tube (M5 - M8 only) | O = Outer O-Ring Seals Same as Seat | T = FEP Encapsulated Spring
Specifications Spring Material
17-7PH Stainless Steel = PH | 316 Stainless Steel = SS | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Monel® 400 = MO | Titanium = TI
Specifications Standard Cracking Pressure
3.50 psi
Specifications Standard End Fitting O Ring Material
Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Polytetrafluoroethylene (PTFE) = TF
Specifications Valve Style
M2 - Female Pipe Threads Both Ends
