M2000 Heavy Duty 4-Bolt Flange Block with Spherical Roller Bearings
M2000 Heavy Duty 4-Bolt Flange Block with Spherical Roller Bearings
SKU:MOU-424ee8
Heavy-duty M2000 flange block offering high load capacity, angular misalignment, and interchangeability with SYR and ZA units.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
M2000 Heavy Duty 4-Bolt Flange Block with Spherical Roller Bearings
$289.99
Quantity: 1
Claim Your Seller Account
M2000 Heavy Duty 4-Bolt Flange Block with Spherical Roller Bearings
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The M2000 4-Bolt Flange Block is a heavy-duty mounted unit designed to offer high load capacity with angular misalignment capability. This unit features a non-expansion configuration with triple lip or labyrinth seals for added protection. With interchangeable options with SYR and ZA units, this flange block is engineered for durability and performance. Shaft Size: 3 11/16 in, Weight: 48 lb.

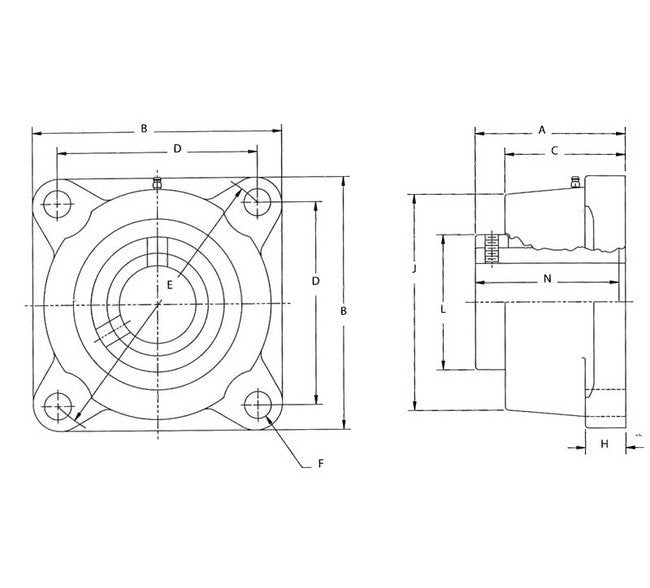

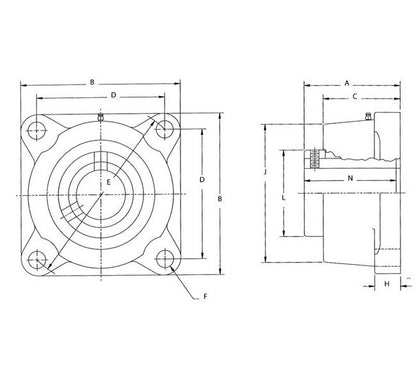

Product Specifications
Specifications A Dimension
4 7/8 in
Specifications Browning Pn
SFB1000-19211311
Specifications B Dimension
9-1/2 in
Specifications Configuration
Non-Expansion
Specifications C Dimension
3-9/16 in
Specifications Dodge Pn
F4BS2000-19211311
Specifications D Dimension
7-19/32 in
Specifications E Dimension
10-3/4 in
Specifications F Dimension
7/8 in
Specifications H Dimension
1-3/16 in
Specifications J Dimension
8-3/8 in
Specifications Link Belt Pn
FB22400H-19211311
Specifications L Dimension
6 in
Specifications Moline Pn
19211311
Specifications N Dimension
4-19/32 in
Specifications Rex Pn
SB2000-19211311
Specifications Shaft Size
3 11/16 in
Specifications Skf Pn
FYR-19211311
Specifications Weight
48 lb
