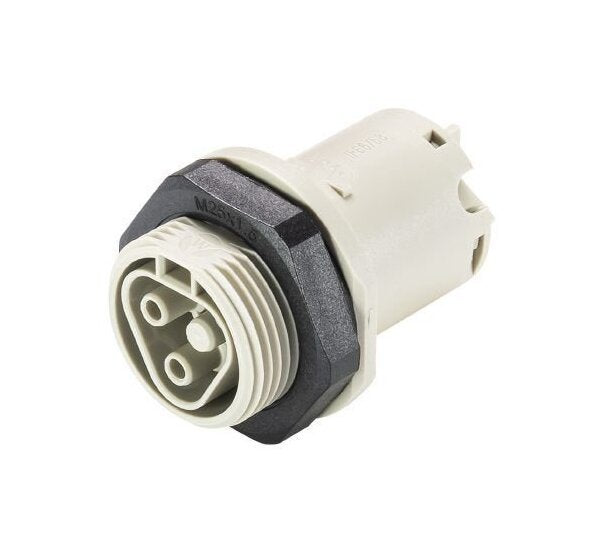

The M25 Thread Size Pebble Gray RST20I2 Female Device Connector is a high-quality, outdoor-rated circular electrical connector suitable for a wide range of applications. With a screw connection and 2 poles, it offers a secure and reliable connection. Rated for 20A current and IP69 protection, this connector meets stringent electrical standards. Designed for cables with a diameter of 10 to 14mm, it supports wire sizes ranging from 0.75 to 6 mm², aligning with international and North American standards like IEC, cULus, and CSA. Its Type 4X / 6P protection makes it ideal for outdoor use, ensuring durability and safety in various environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
General Angle Of Plug
Straight
General Brands
Wieland
General Color Of Codingcontact Carrier
Pebble Gray
General Connection Type
Screw Connection
General Connector Type
Female
General Maximum Rated Voltage
600 V
General Minimum Rated Voltage
250 V | 400 V
General Model
RST20I2 Female
General Number Of Poles
2
General Rated Current
20 A
General Rated Current Canada
15 A
Note Note
Technical details are subject to change
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Cable Diameter
10 to 14 mm | 13 to 18 mm | 6 to 10 mm
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Thread Size
M25
Technical Data Wire Size According To Canadian Standards Associa
16 to 12 AWG
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.50 to 2.5 mm²
