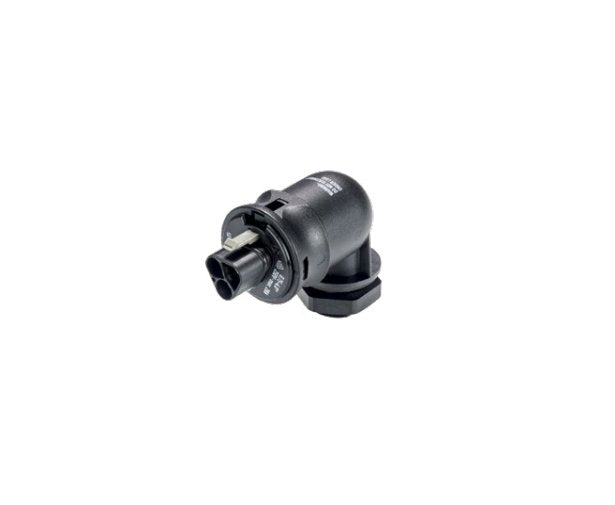

M25 Thread Size Pebble Gray RST20I2 Male Device Connector
M25 Thread Size Pebble Gray RST20I2 Male Device Connector
SKU:CIR-033f71
Durable M25 Thread Size Pebble Gray Male Device Connector for outdoor electrical connections. IP69 protection, 20A rated current.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
M25 Thread Size Pebble Gray RST20I2 Male Device Connector
$29.99
Quantity: 1
Claim Your Seller Account
M25 Thread Size Pebble Gray RST20I2 Male Device Connector
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The M25 Thread Size Pebble Gray RST20I2 Male Device Connector is a high-quality circular electrical connector designed for outdoor use. This connector features a screw connection, 2 poles, and a rated current of 20A, making it suitable for various applications. With IP69 protection and color-coded contact carriers, this connector ensures secure and reliable connections in demanding environments. It accommodates cable diameters ranging from 10 to 18mm and meets stringent technical standards such as IEC and cULus wire size requirements.
Product Specifications
General Angle Of Plug
Angled 90º
General Brands
Wieland
General Color Of Codingcontact Carrier
Pebble Gray
General Connection Type
Screw Connection
General Connector Type
Male
General Maximum Rated Voltage
600 V
General Minimum Rated Voltage
250 V | 400 V
General Model
RST20I2 Male
General Number Of Poles
2
General Rated Current
20 A
General Rated Current Canada
15 A
Note Note
Technical details are subject to change
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Cable Diameter
10 to 14 mm | 13 to 18 mm | 6 to 10 mm
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Thread Size
M25
Technical Data Wire Size According To Canadian Standards Associa
16 to 12 AWG
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.50 to 2.5 mm²
