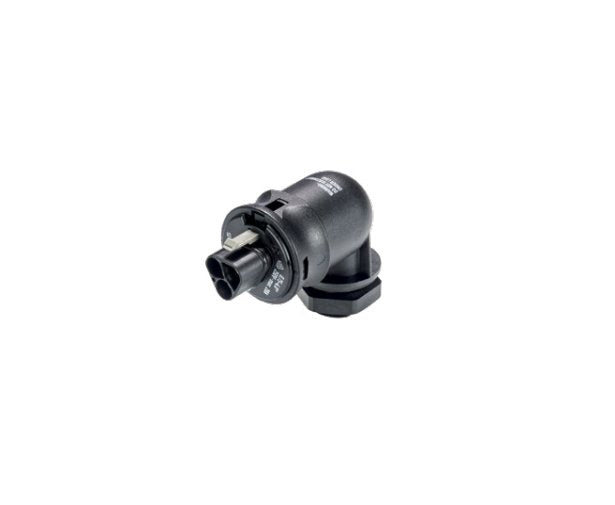

M25 Thread Size Signal Brown RST20I2 Male Device Connector
M25 Thread Size Signal Brown RST20I2 Male Device Connector
SKU:CIR-f35feb
High-quality outdoor-rated connector with spring clamp connection, angled 90º plug, and 20A current rating.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
M25 Thread Size Signal Brown RST20I2 Male Device Connector
$24.99
Quantity: 1
Claim Your Seller Account
M25 Thread Size Signal Brown RST20I2 Male Device Connector
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The M25 Thread Size Signal Brown RST20I2 Male Device Connector is a high-quality circular electrical connector designed for outdoor use. Featuring a spring clamp connection and an angled 90º plug, this connector is reliable and easy to install. With a rated current of 20A, and a durable construction meeting IP69 and Type 4X/6P protection standards, it ensures safe and secure electrical connections. Suitable for wire sizes ranging from 0.75 to 6 mm² (IEC) and 16 to 10 AWG (cULus), this connector is versatile and reliable for various applications.
Product Specifications
General Angle Of Plug
Angled 90º
General Brands
Wieland
General Color Of Codingcontact Carrier
Signal Brown
General Connection Type
Spring Clamp Connection
General Connector Type
Male
General Maximum Rated Voltage
600 V
General Minimum Rated Voltage
250 V | 400 V
General Model
RST20I2 Male
General Number Of Poles
2
General Rated Current
20 A
General Rated Current Canada
15 A
Note Note
Technical details are subject to change
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Cable Diameter
10 to 14 mm | 13 to 18 mm | 6 to 10 mm
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Thread Size
M25
Technical Data Wire Size According To Canadian Standards Associa
16 to 12 AWG
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.50 to 2.5 mm²
