M3 Closed End Rivet Nut, 17.5mm L, Large CSK Head, Zinc Plated Steel

Name: M3 Closed End Rivet Nut, 17.5mm L, Large CSK Head, Zinc Plated Steel
Brand: Ornit USA
SKU: MSE-521a2b
Price: 9.99 USD
Availability: OutOfStock

SKU:MSE-521a2b

High-strength M3 Rivet Nut with Large CSK Head, ideal for diverse applications. Steel with Zinc Plating. Various grip ranges available.

$9.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The M-Series 17.5mm Dimension L Closed End Rivet Nut features a large countersunk head design, perfect for secure fastening in a wide range of materials. Made from high-quality steel with a durable zinc plated finish, it offers superior strength and corrosion resistance. With a precise M3 thread size, this rivet nut ensures a reliable fit for various applications. Its dimensions, ranging from 3.5mm to 5.0mm grip range, make it versatile for different project requirements. Explore the options of stainless steel and aluminum variants for enhanced customization.

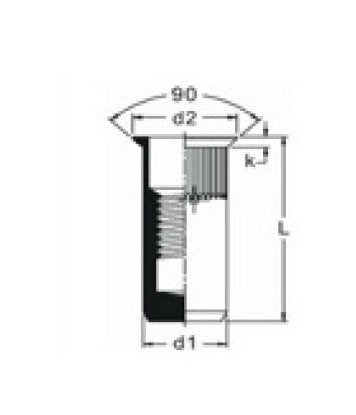

Product Specifications

Dimensions Dimension D1

4.9 mm

Dimensions Dimension L

17.5 mm

Dimensions Hole Size

5.0 mm

Dimensions Maximum Dimension D2

7.4 mm

Dimensions Maximum Dimension K

1.5 mm

Dimensions Maximum Grip Range

5.0 mm

Dimensions Minimum Grip Range

3.5 mm

Note Note

Stainless Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Zinc Plated

Technical Specs Head Style

Countersunk Head (Large)

Technical Specs Material

Steel

Technical Specs Rivet Type

Closed End

Technical Specs Thread Size

M3 Closed End Rivet Nut, 17.5mm L, Large CSK Head, Zinc Plated Steel
