M3 Rivet Nut - Large Countersunk Head (16.5mm)

Name: M3 Rivet Nut - Large Countersunk Head (16.5mm)
Brand: Ornit USA
SKU: MSE-ce3ada
Price: 12.99 USD
Availability: OutOfStock

SKU:MSE-ce3ada

High-quality M3 Rivet Nut with Large Countersunk Head for secure and durable fastening in various applications.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

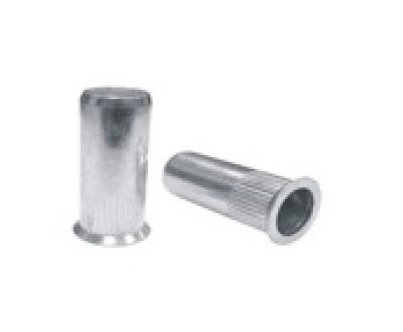

The M-Series 16.5mm Dimension L and M3 Thread Size Closed End Countersunk Head (Large) Rivet Nut is a high-quality solution designed for secure fastening in a wide range of applications. Made of durable steel with a zinc-plated finish, this rivet nut offers exceptional strength and corrosion resistance. With dimensions catering to a minimum grip range of 1.5mm and a maximum of 3.5mm, this versatile nut provides a reliable and lasting connection. Ideal for industrial, automotive, and construction projects, this rivet nut ensures precision and durability, meeting the stringent requirements of government and institutional procurement standards.

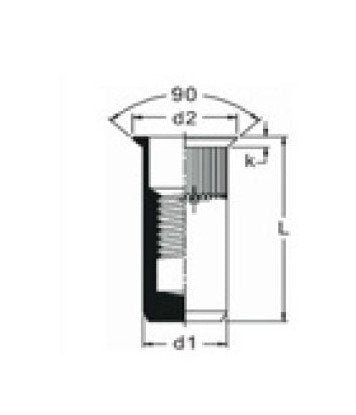

Product Specifications

Dimensions Dimension D1

4.9 mm

Dimensions Dimension L

16.5 mm

Dimensions Hole Size

5.0 mm

Dimensions Maximum Dimension D2

7.4 mm

Dimensions Maximum Dimension K

1.5 mm

Dimensions Maximum Grip Range

3.5 mm

Dimensions Minimum Grip Range

1.5 mm

Note Note

Stainless Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Zinc Plated

Technical Specs Head Style

Countersunk Head (Large)

Technical Specs Material

Steel

Technical Specs Rivet Type

Closed End

Technical Specs Thread Size

M3 Rivet Nut - Large Countersunk Head (16.5mm)
