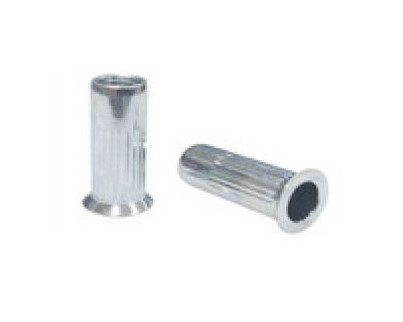

M3 Steel Rivet Nut - Open End Countersunk Head (Large)

Name: M3 Steel Rivet Nut - Open End Countersunk Head (Large)
Brand: Ornit USA
SKU: MSE-c8035c
Price: 12.99 USD
Availability: OutOfStock

SKU:MSE-c8035c

Durable M3 Steel Rivet Nut with Large Countersunk Head, ideal for various applications. Available in steel, zinc plated, stainless steel & aluminum.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The M-Series 11.5mm Dimension L and M3 Thread Size Open End Countersunk Head (Large) Steel Rivet Nut is a high-quality fastener suitable for a range of applications. Made from durable steel with a zinc-plated finish, this rivet nut offers a strong grip range of 1.5mm to 3.5mm. Featuring a large countersunk head for a flush finish, it is compatible with a 5.0mm hole size. Notably, this product is also available in stainless steel and aluminum variants, catering to diverse needs.

Product Specifications

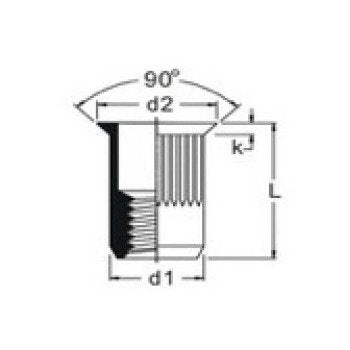

Dimensions Dimension D1

4.9 mm

Dimensions Dimension L

11.5 mm

Dimensions Hole Size

5.0 mm

Dimensions Maximum Dimension D2

7.4 mm

Dimensions Maximum Dimension K

1.5 mm

Dimensions Maximum Grip Range

3.5 mm

Dimensions Minimum Grip Range

1.5 mm

Note Note

Stainless Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Zinc Plated

Technical Specs Head Style

Countersunk Head (Large)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

M3 Steel Rivet Nut - Open End Countersunk Head (Large)
