M3 Thread Size Flat Rivet Nut, 10.5mm L - M-Series

Name: M3 Thread Size Flat Rivet Nut, 10.5mm L - M-Series
Brand: Ornit USA
SKU: MSE-1efb6c
Price: 22.99 USD
Availability: OutOfStock

SKU:MSE-1efb6c

Secure and durable M3 Thread Flat Rivet Nut, 10.5mm L, precise grip range, zinc plated finish.

$22.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

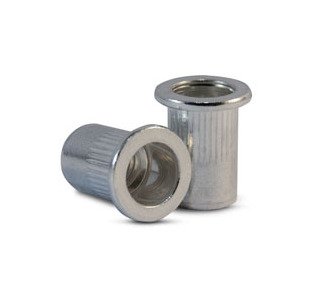

The M-Series 10.5mm Dimension L and M3 Thread Size Flat Rivet Nut is a high-quality fastening solution designed by Ornit. Made of steel with a zinc plated finish, this open end cylindrical head rivet nut offers a secure grip range from 0.5mm to 2.5mm. With a 5.0mm hole size and cylindrical flat head style, it ensures precise and durable fastening. Stainless steel and aluminum options are also available to meet specific requirements. This rivet nut is ideal for a wide range of applications, providing reliability and compliance with industry standards.

Product Specifications

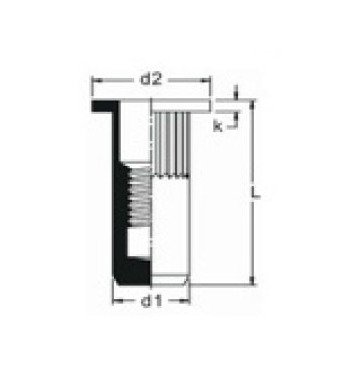

Dimensions Dimension D1

5.0 mm

Dimensions Dimension L

10.5 mm

Dimensions Hole Size

5.0 mm

Dimensions Maximum Dimension D2

7.0 mm

Dimensions Maximum Dimension K

0.8 mm

Dimensions Maximum Grip Range

2.5 mm

Dimensions Minimum Grip Range

0.5 mm

Note Note

Stainless Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Zinc Plated

Technical Specs Head Style

Cylindrical Head (Flat)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

M3 Thread Size Flat Rivet Nut, 10.5mm L - M-Series
