M4 Closed End Countersunk Head Rivet Nut, 20.5mm L

Name: M4 Closed End Countersunk Head Rivet Nut, 20.5mm L
Brand: Ornit USA
SKU: MSE-25252a
Price: 12.99 USD
Availability: OutOfStock

SKU:MSE-25252a

Ornit M4 Rivet Nut: Steel, Zinc Plated, 20.5mm L, Countersunk Head. Secure grip range 4.0-6.5mm. Versatile for industrial needs.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

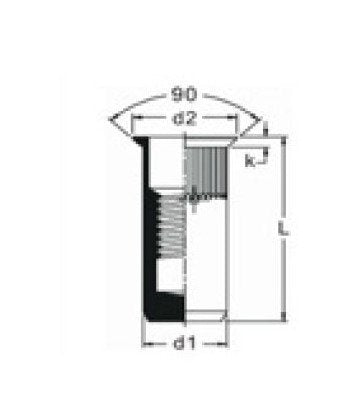

The M-Series 20.5mm Dimension L and M4 Thread Size Closed End Countersunk Head Rivet Nut is designed by Ornit with precision engineering using steel material and zinc plating for durability. With dimensions ensuring a secure grip range of 4.0mm to 6.5mm, hole size 6.0mm, and maximum dimensions d1 of 5.9mm, d2 of 8.4mm, and K of 1.5mm, this rivet nut guarantees secure fastening in various applications. Additionally, options in stainless steel and aluminum are available for specific needs, making it versatile and reliable for industrial and government procurement purposes.

Product Specifications

Dimensions Dimension D1

5.9 mm

Dimensions Dimension L

20.5 mm

Dimensions Hole Size

6.0 mm

Dimensions Maximum Dimension D2

8.4 mm

Dimensions Maximum Dimension K

1.5 mm

Dimensions Maximum Grip Range

6.5 mm

Dimensions Minimum Grip Range

4.0 mm

Note Note

Stainless Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Zinc Plated

Technical Specs Head Style

Countersunk Head (Large)

Technical Specs Material

Steel

Technical Specs Rivet Type

Closed End

Technical Specs Thread Size

M4 Closed End Countersunk Head Rivet Nut, 20.5mm L
