M5-0.8 Thread Size EIA Rail Cage Nut - Industrial-Grade Hardware

Name: M5-0.8 Thread Size EIA Rail Cage Nut - Industrial-Grade Hardware
Brand: All Electronics Hardware
SKU: IND-a9d47a
Price: 12.99 USD
Availability: OutOfStock

SKU:IND-a9d47a

Upgrade your infrastructure with precision-engineered M5-0.8 EIA Rail Cage Nut for seamless installations on 2.0-3.0 mm rails.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

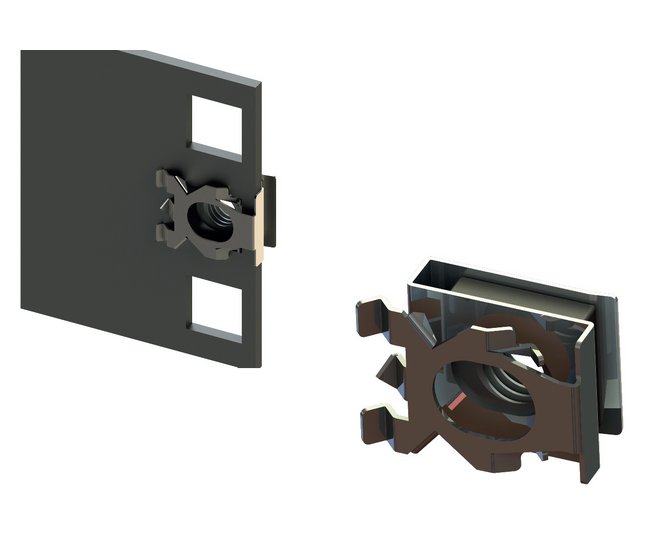

Upgrade your infrastructure with the M5-0.8 Thread Size EIA Rail Cage Nut. Manufactured by All Electronics Hardware, this cage nut features a spring stainless steel cage with 0.040 mm thickness and 510 HRB hardness, combined with a nut made of die-cast zinc with a clear zinc-plated finish. Designed for tool-less installation, this nut offers easy assembly on EIA Rails with thickness ranging from 2.0 mm to 3.0 mm. Additionally, it includes grounding tabs for enhanced stability and reliability during operation.

Product Specifications

Features

Tool-Less InstallationFloating NutGrounding Tabs Built InFor EIA Rail Thickness 2.0 mm-3.0 mm

Specifications Finish

Cage - Passivated | Nut - Clear Zinc Plated

Specifications Material

Cage - Spring Stainless Steel. 0.040 mm Thick 510 HRB Hardness | Nut - Die Cast Zinc

Specifications Thread Size

M5-0.8

M5-0.8 Thread Size EIA Rail Cage Nut - Industrial-Grade Hardware
