M5 Countersunk Head Steel Rivet Nut, 18.5mm

Name: M5 Countersunk Head Steel Rivet Nut, 18.5mm
Brand: Ornit USA
SKU: MSE-da4b7c
Price: 24.99 USD
Availability: OutOfStock

SKU:MSE-da4b7c

Versatile M5 Countersunk Rivet Nut, 18.5mm, Zinc Plated, strong grip, ideal for various materials.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

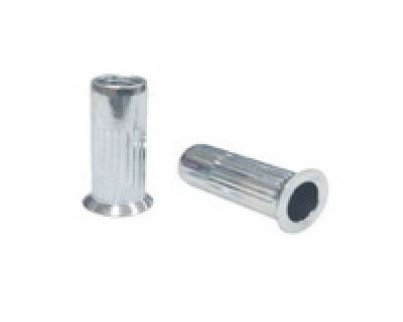

The M-Series 18.5mm Steel Rivet Nut with an M5 Thread Size and large Countersunk Head is designed for secure fastening in a wide grip range of 6.5mm to 9.0mm. Coated with durable Zinc Plating, this open-end rivet nut offers strength and corrosion resistance. Suitable for various materials, it comes in Stainless Steel & Aluminum options, meeting versatile fastening needs.

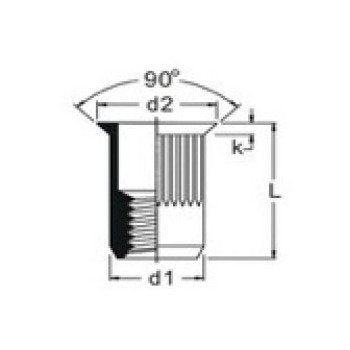

Product Specifications

Dimensions Dimension D1

6.9 mm

Dimensions Dimension L

18.5 mm

Dimensions Hole Size

7.0 mm

Dimensions Maximum Dimension D2

9.4 mm

Dimensions Maximum Dimension K

1.5 mm

Dimensions Maximum Grip Range

9.0 mm

Dimensions Minimum Grip Range

6.5 mm

Note Note

Stainless Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Zinc Plated

Technical Specs Head Style

Countersunk Head (Large)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

M5 Countersunk Head Steel Rivet Nut, 18.5mm
