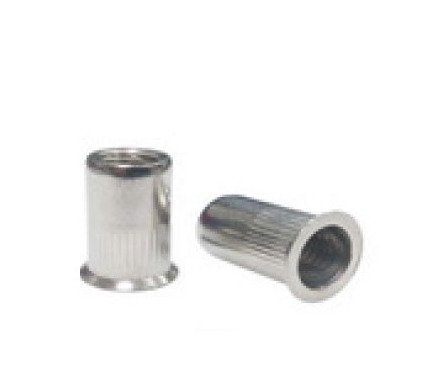

M5 Stainless Steel Rivet Nut, Countersunk Head, 16.0mm L

Name: M5 Stainless Steel Rivet Nut, Countersunk Head, 16.0mm L
Brand: Ornit USA
SKU: MSE-c5677b
Price: 14.99 USD
Availability: OutOfStock

SKU:MSE-c5677b

High-quality M5 Stainless Steel Rivet Nut for secure installations, meets Federal standards.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The M-Series 16.0mm Stainless Steel Rivet Nut with M5 thread size features a large countersunk head design, ideal for secure installations. Made from high-quality stainless steel, this rivet nut ensures durability and corrosion resistance. With dimensions meeting industry standards, a grip range of 4.0-6.5mm, and a versatile hole size of 7.0mm, it is suitable for various applications. Compliant with Federal procurement standards, this rivet nut guarantees reliability and performance in critical installations.

Product Specifications

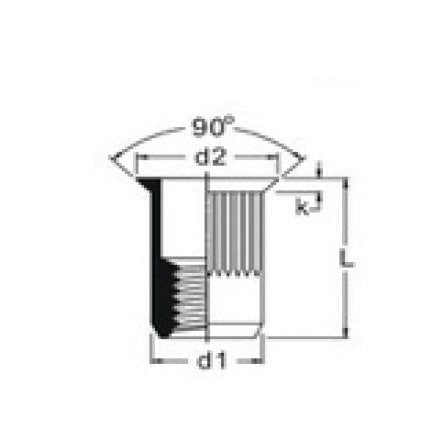

Dimensions Dimension D1

6.9 mm

Dimensions Dimension L

16.0 mm

Dimensions Hole Size

7.0 mm

Dimensions Maximum Dimension D2

9.4 mm

Dimensions Maximum Dimension K

1.5 mm

Dimensions Maximum Grip Range

6.5 mm

Dimensions Minimum Grip Range

4.0 mm

Note Note

Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Natural

Technical Specs Head Style

Countersunk Head (Large)

Technical Specs Material

Stainless Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

M5 Stainless Steel Rivet Nut, Countersunk Head, 16.0mm L
