M5 Stainless Steel Semi-Hex Rivet Nut
M5 Stainless Steel Semi-Hex Rivet Nut
SKU:MSE-a1e5b2
High-quality M5 Stainless Steel Rivet Nut with semi-hexagon shape and flat cylindrical head for versatile applications.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
M5 Stainless Steel Semi-Hex Rivet Nut
$12.99
Quantity: 1
Claim Your Seller Account
M5 Stainless Steel Semi-Hex Rivet Nut
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

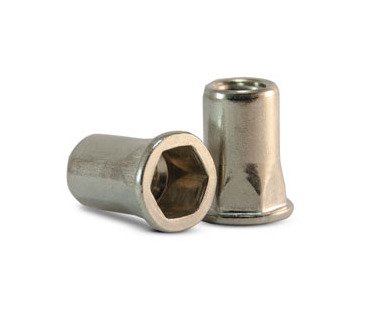

The M-Series M5 Tread Size Semi-Hexagon Cylindrical Head (Flat) Rivet Nut is crafted from high-quality Stainless Steel A2, ensuring exceptional durability and corrosion resistance. With a unique semi-hexagon shape and a flat cylindrical head design, this rivet nut offers reliable performance in a wide range of applications. Its precise dimensions, including a thread size of M5, make it suitable for various projects requiring a grip range of 0.5mm to 3.0mm. This versatile rivet nut is available in natural finish and can be used with both steel and aluminum materials, meeting the diverse needs of industrial and institutional buyers.
Product Specifications

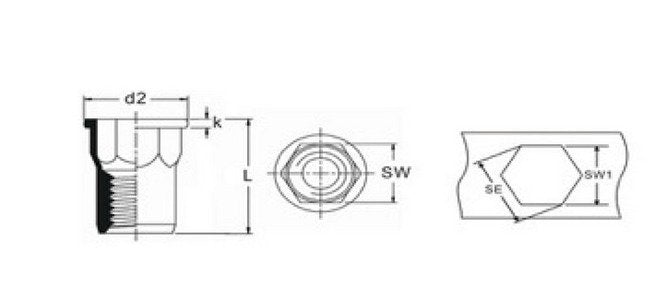

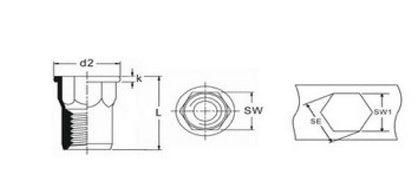

Dimensions Dimension D1
7.9 mm
Dimensions Dimension L
14.5 mm
Dimensions Hole Size
7.1 mm
Dimensions Maximum Dimension D2
10.3 mm
Dimensions Maximum Dimension K
1.0 mm
Dimensions Maximum Grip Range
3.0 mm
Dimensions Minimum Grip Range
0.5 mm
Note Note
Steel & Aluminum are available.
Technical Specs Brands
Ornit
Technical Specs Finish
Natural
Technical Specs Head Style
Cylindrical Head (Flat)
Technical Specs Material
Stainless Steel A2
Technical Specs Rivet Type
Semi-Hexagone
Technical Specs Thread Size
M5 | SW 7.0
