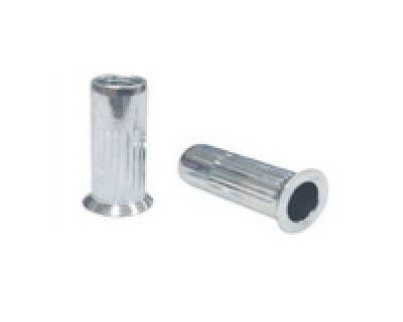

M5 Steel Rivet Nut - 14.0mm L, Open End, Countersunk Head (Large)

Name: M5 Steel Rivet Nut - 14.0mm L, Open End, Countersunk Head (Large)
Brand: Ornit USA
SKU: MSE-f7644a
Price: 9.99 USD
Availability: OutOfStock

SKU:MSE-f7644a

Upgrade your assembly with the M5 Steel Rivet Nut - 14.0mm L, Open End, Countersunk Head (Large) - Ideal for various materials

$9.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your assembly process with the M-Series 14.0mm Steel Rivet Nut featuring M5 Thread Size and a durable Zinc Plated finish. With a large Countersunk Head, this rivet nut offers a secure grip range of 1.5mm to 4.0mm, catering to various applications. Compatible with a 7.0mm hole size, it ensures easy installation for stainless steel, aluminum, and other materials. Trust Ornit for quality and reliability.

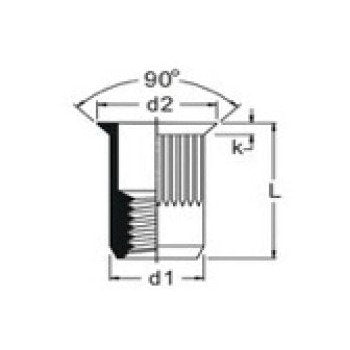

Product Specifications

Dimensions Dimension D1

6.9 mm

Dimensions Dimension L

14.0 mm

Dimensions Hole Size

7.0 mm

Dimensions Maximum Dimension D2

9.4 mm

Dimensions Maximum Dimension K

1.5 mm

Dimensions Maximum Grip Range

4.0 mm

Dimensions Minimum Grip Range

1.5 mm

Note Note

Stainless Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Zinc Plated

Technical Specs Head Style

Countersunk Head (Large)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

M5 Steel Rivet Nut - 14.0mm L, Open End, Countersunk Head (Large)
