M5 Steel Rivet Nut - Large Countersunk Head, 16.0mm L

Name: M5 Steel Rivet Nut - Large Countersunk Head, 16.0mm L
Brand: Ornit USA
SKU: MSE-b37c1f
Price: 12.99 USD
Availability: OutOfStock

SKU:MSE-b37c1f

Durable M5 steel rivet nut with large countersunk head for secure industrial fastening. Available in multiple materials.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

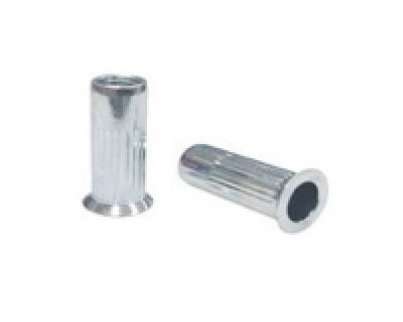

The M-Series 16.0mm Dimension L and M5 Thread Size Open End Countersunk Head Steel Rivet Nut is a robust fastening solution ideal for industrial applications. Crafted from durable steel with a zinc-plated finish, this rivet nut offers a secure grip range of 4.0mm to 6.5mm. Its large countersunk head ensures flush installation, enhancing the overall aesthetics. Available in stainless steel and aluminum variants, this rivet nut meets stringent industry standards for reliability and performance.

Product Specifications

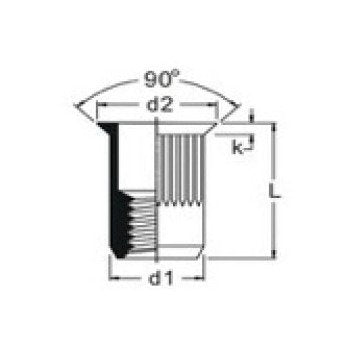

Dimensions Dimension D1

6.9 mm

Dimensions Dimension L

16.0 mm

Dimensions Hole Size

7.0 mm

Dimensions Maximum Dimension D2

9.4 mm

Dimensions Maximum Dimension K

1.5 mm

Dimensions Maximum Grip Range

6.5 mm

Dimensions Minimum Grip Range

4.0 mm

Note Note

Stainless Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Zinc Plated

Technical Specs Head Style

Countersunk Head (Large)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

M5 Steel Rivet Nut - Large Countersunk Head, 16.0mm L
