M6 Closed End Countersunk Head Rivet Nut - 23.0mm Dimension

Name: M6 Closed End Countersunk Head Rivet Nut - 23.0mm Dimension
Brand: Ornit USA
SKU: MSE-ae0f24
Price: 12.99 USD
Availability: OutOfStock

SKU:MSE-ae0f24

Enhance your projects with the M6 Closed End Rivet Nut - durable, secure, and compliant.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

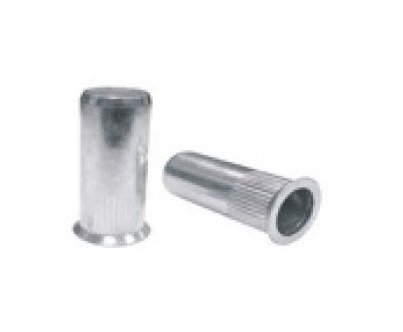

Upgrade your fastening solutions with the M6 Closed End Countersunk Head Rivet Nut. Constructed from high-quality steel with a zinc-plated finish, this rivet nut offers a reliable and durable fastening option. With a Thread Size of M6 and Dimensions of 23.0mm (L) x 8.9mm (d1), it provides a secure grip ranging from 1.5mm to 4.0mm. Perfect for various applications, this rivet nut ensures precision and strength while conforming to industry standards.

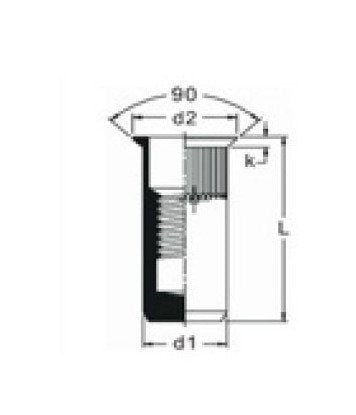

Product Specifications

Dimensions Dimension D1

8.9 mm

Dimensions Dimension L

23.0 mm

Dimensions Hole Size

9.0 mm

Dimensions Maximum Dimension D2

11.4 mm

Dimensions Maximum Dimension K

1.5 mm

Dimensions Maximum Grip Range

4.0 mm

Dimensions Minimum Grip Range

1.5 mm

Note Note

Stainless Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Zinc Plated

Technical Specs Head Style

Countersunk Head (Large)

Technical Specs Material

Steel

Technical Specs Rivet Type

Closed End

Technical Specs Thread Size

M6 Closed End Countersunk Head Rivet Nut - 23.0mm Dimension
