M6 Semi-Hex Cylindrical Rivet Nut

Name: M6 Semi-Hex Cylindrical Rivet Nut
Brand: Ornit USA
SKU: MSE-32514b
Price: 9.99 USD
Availability: OutOfStock

SKU:MSE-32514b

Premium M6 Semi-Hex Cylindrical Rivet Nut for secure fastening, made of Stainless Steel A2. Compliant with Federal/DoD standards.

$9.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The M-Series M6 Tread Size Semi-Hexagon Cylindrical Head (Flat) Rivet Nut by Ornit is a premium fastening solution made of high-quality Stainless Steel A2, ensuring durability and corrosion resistance. With a head style of Cylindrical Head (Flat) and precise dimensions, including a secure grip range of 0.5-3.0mm, this rivet nut is ideal for a wide range of applications. Compliant with Federal/DoD procurement standards and suitable for steel & aluminum materials, this rivet nut meets stringent industry requirements.

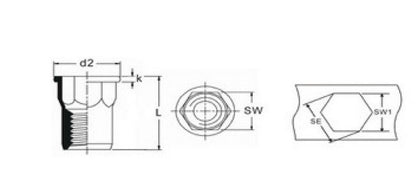

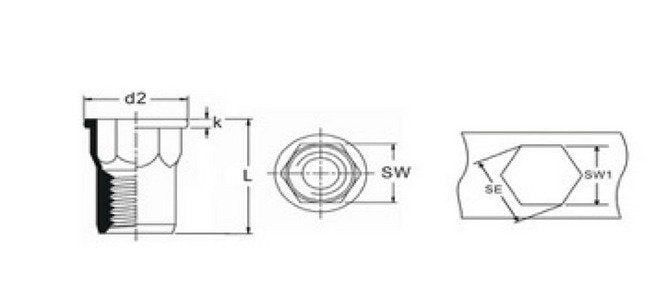

Product Specifications

Dimensions Dimension D1

10.2 mm

Dimensions Dimension L

17.0 mm

Dimensions Hole Size

9.1 mm

Dimensions Maximum Dimension D2

12.3 mm

Dimensions Maximum Dimension K

1.5 mm

Dimensions Maximum Grip Range

3.0 mm

Dimensions Minimum Grip Range

0.5 mm

Note Note

Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Natural

Technical Specs Head Style

Cylindrical Head (Flat)

Technical Specs Material

Stainless Steel A2

Technical Specs Rivet Type

Semi-Hexagone

Technical Specs Thread Size

M6 | SW 9.0
