M6 x 15.5mm Countersunk Head Rivet Nut

Name: M6 x 15.5mm Countersunk Head Rivet Nut
Brand: Ornit USA
SKU: PSE-deec34
Price: 12.99 USD
Availability: OutOfStock

SKU:PSE-deec34

Durable M6 rivet nut with 15.5mm length and secure grip range. Ideal for fastening various materials.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

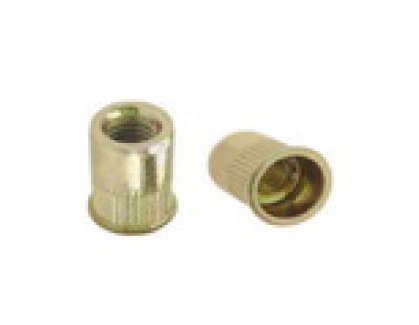

The P-Series Open End Countersunk Head (CSK) Rivet Nut in M6 thread size is crafted from durable steel with a yellow zinc-plated finish. With a dimension L of 15.5mm and a grip range of 2.5mm to 4.0mm, this rivet nut offers secure fastening and easy installation. Suitable for various materials, it ensures a reliable connection. Available in stainless steel and aluminum variants, with serration style options.

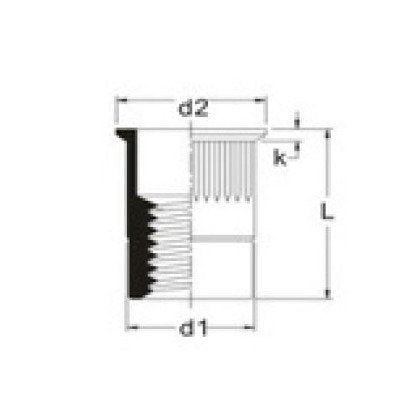

Product Specifications

Dimensions Dimension D1

9.0 mm

Dimensions Dimension D2

10.0 mm

Dimensions Dimension K

0.5 mm

Dimensions Dimension L

15.5 mm

Dimensions Hole Size

9.1 mm

Dimensions Maximum Grip Range

4.0 mm

Dimensions Minimum Grip Range

2.5 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Countersunk Head (CSK)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

M6 x 15.5mm Countersunk Head Rivet Nut
