M8 Countersunk Large Head Steel Rivet Nut, 21.0mm L

Name: M8 Countersunk Large Head Steel Rivet Nut, 21.0mm L
Brand: Ornit USA
SKU: MSE-1d85e3
Price: 12.99 USD
Availability: OutOfStock

SKU:MSE-1d85e3

Durable M8 steel rivet nut with large countersunk head, 21.0mm L, zinc-plated finish, ideal for various applications.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

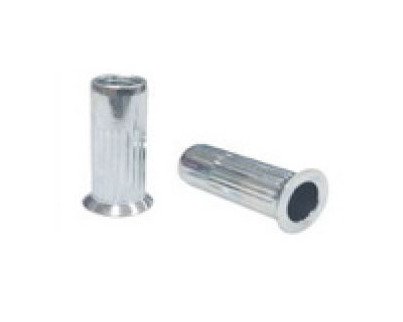

The M8 Countersunk Large Head Steel Rivet Nut in the M-Series is designed for secure fastening in various materials. Constructed from durable steel with a zinc-plated finish, it offers reliable performance. With dimensions that accommodate grip ranges from 4.0mm to 6.5mm, and an open end for easy installation, this rivet nut is a versatile solution for your assembly needs. Additionally, stainless steel and aluminum options are available to meet specific requirements.

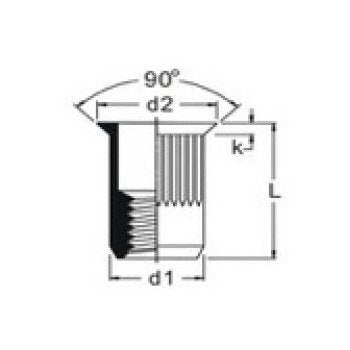

Product Specifications

Dimensions Dimension D1

11.0 mm

Dimensions Dimension L

21.0 mm

Dimensions Hole Size

11.0 mm

Dimensions Maximum Dimension D2

13.4 mm

Dimensions Maximum Dimension K

1.5 mm

Dimensions Maximum Grip Range

6.5 mm

Dimensions Minimum Grip Range

4.0 mm

Note Note

Stainless Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Zinc Plated

Technical Specs Head Style

Countersunk Head (Large)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

M8 Countersunk Large Head Steel Rivet Nut, 21.0mm L
